Bosch GBM 400 Drill spare parts

    Tool number 3 601 AC1 0F1 · 230 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    1 619 P20 885

    On request

    Field

    1 607 200 34A

    ₹446

    Switch

    1 604 460 72V

    ₹123

    Power supply cord

    1 619 P06 024

    ₹43

    Ball Bearing

    1 619 P10 887

    ₹217

    Drilling Spindle

    1 619 P10 888

    ₹240

    Cylindrical Gear

    2 609 110 495

    ₹1,717

    Keyless Chuck Ø1.0-10 MM 3/8

    1 617 S02 8EP

    ₹855

    Armature set

    2 610 391 290

    ₹48

    Carbon-Brush Set

    All parts

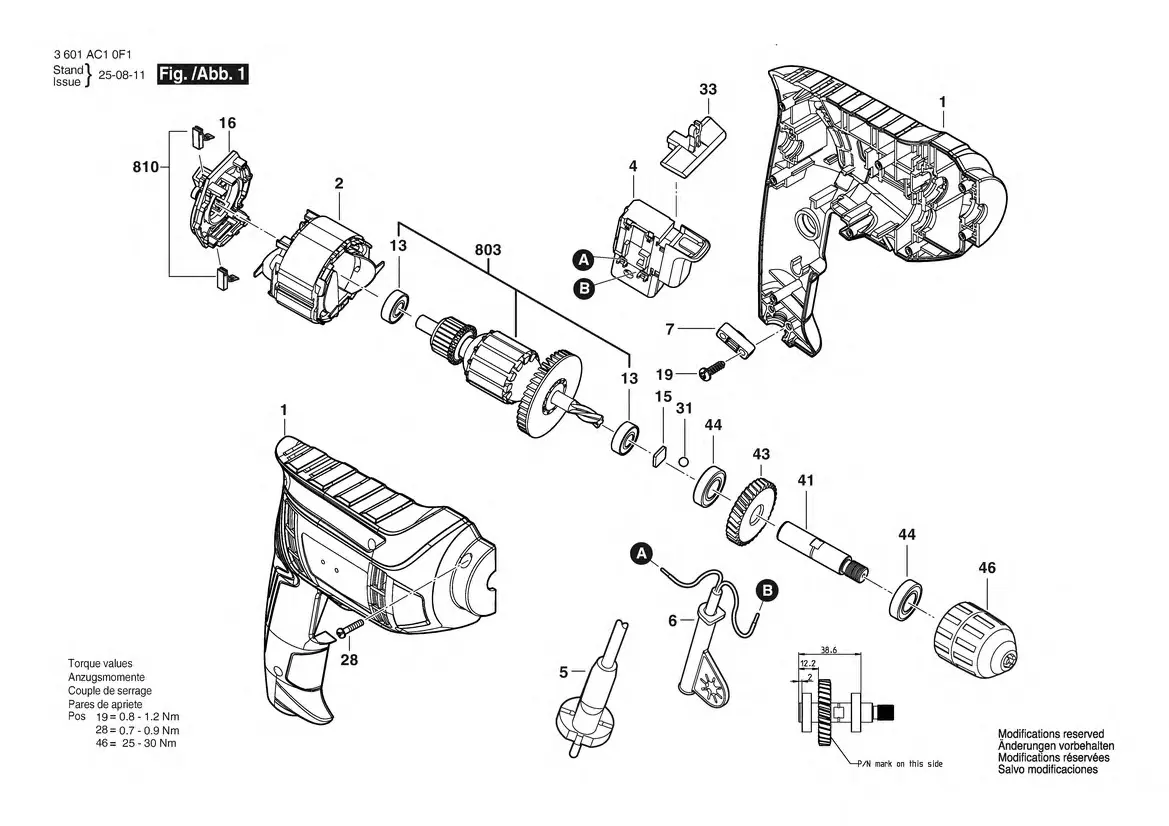

    ItemPart numberDescriptionQtyList price
    Motor Housing1₹142
    1 619 P20 885FieldWear part1On request
    1 607 200 34ASwitchWear part1₹446
    1 604 460 72VPower supply cordWear part1₹123
    2 600 707 059Grommet Ø6.9 MM1₹75
    2 601 035 001Cable ClipWear part1₹49
    1 619 P06 024Ball BearingWear part2₹43
    2 609 110 019Pressure Plate1₹48
    Brush Holder1₹161
    2 603 490 022Screw 4X162₹30
    1 619 P00 219Tapping Screw8₹50
    1 903 230 009Ball DIN 5401-5 G281₹70
    Adjusting Slide1₹26
    1 619 P10 887Drilling SpindleWear part1₹217
    1 619 P10 888Cylindrical GearWear part1₹240
    1 619 X07 256Ball BearingWear part2₹54
    2 609 110 495Keyless Chuck Ø1.0-10 MM 3/8Wear part1₹1,717
    1 617 S02 8EPArmature setWear part1₹855
    2 610 391 290Carbon-Brush SetWear part1₹48

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the field (stator) part number for the Bosch GBM 400?

    Field, Bosch part number 1 619 P20 885 (diagram item 2).

    What is the switch part number for the Bosch GBM 400?

    Switch, Bosch part number 1 607 200 34A (diagram item 4). List price ₹446.

    Which power cord fits the Bosch GBM 400?

    Power supply cord, Bosch part number 1 604 460 72V (diagram item 5). List price ₹123.

    Which bearings does the Bosch GBM 400 use?

    Ball Bearing, Bosch part number 1 619 P06 024 (diagram item 13). List price ₹43.

    What is the spindle part number for the Bosch GBM 400?

    Drilling Spindle, Bosch part number 1 619 P10 887 (diagram item 41). List price ₹217.

    What is the gear set part number for the Bosch GBM 400?

    Cylindrical Gear, Bosch part number 1 619 P10 888 (diagram item 43). List price ₹240.
