Bosch GBM 38 Drill spare parts
Tool number 3 601 AC5 0F0 · 230 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹157
Switch Plate
₹237
Cable Conduit
₹1,686
Pinion Shaft
₹211
Ball Bearing
₹1,918
Spindle
₹200
Carbon Brush
₹2,108
Field
₹3,307
Armature

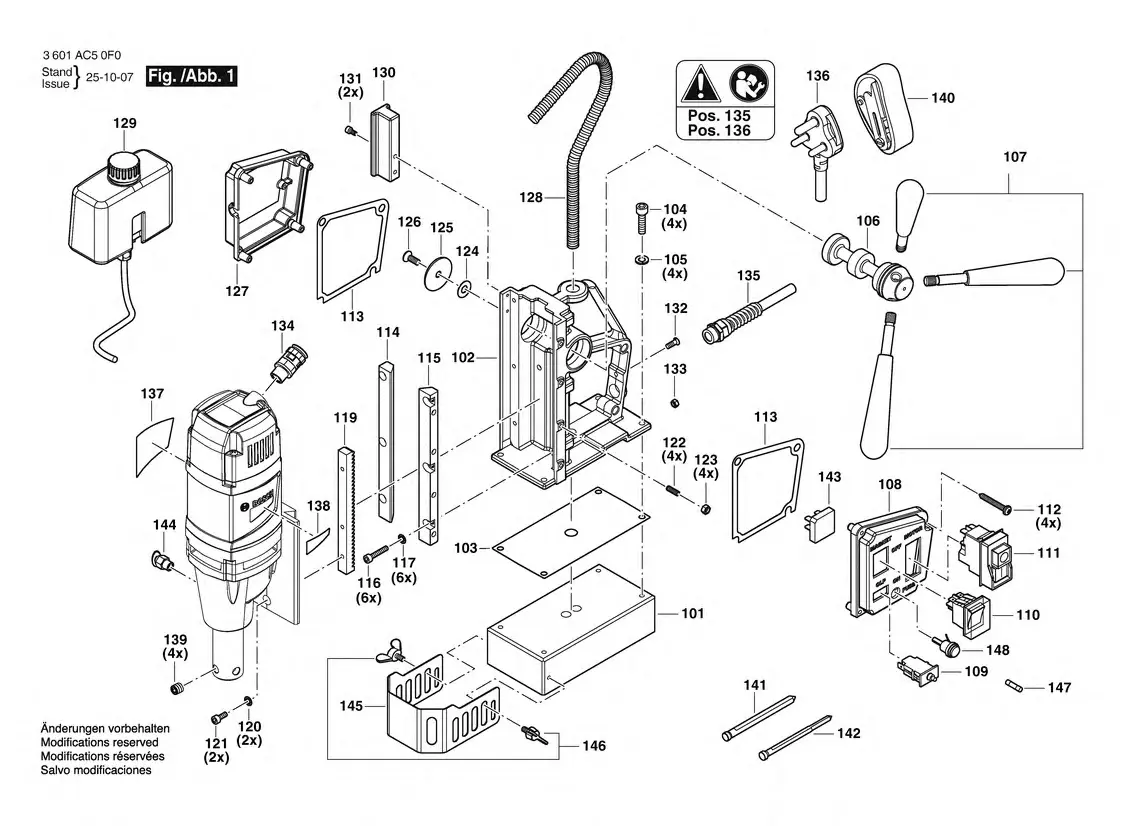

All parts
| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Magnetic Base | 1 | ₹8,690 | ||
| Cover Disc | 1 | ₹170 | ||
| Frame | 1 | ₹2,520 | ||
| Screw | 1 | ₹67 | ||
| gasket | 1 | ₹106 | ||
| 1 617 S02 5F9 | Switch PlateWear part | 1 | ₹157 | |
| Screw | 4 | ₹65 | ||
| 1 617 S02 5FA | Cable ConduitWear part | 1 | ₹237 | |
| Spring Washer | 4 | ₹61 | ||
| Coolant Tank | 1 | ₹1,046 | ||
| 1 617 S02 5DT | Pinion ShaftWear part | 1 | ₹1,686 | |
| Clamp | 1 | ₹116 | ||
| Handle | 3 | ₹349 | ||
| Screw | 2 | ₹64 | ||
| 1 617 S02 5DV | Switch PlateWear part | 1 | ₹365 | |
| Screw | 1 | ₹63 | ||
| 1 617 S02 5DW | Motor Protection SwitchWear part | 1 | ₹442 | |
| Nut | 1 | ₹54 | ||
| 1 617 S02 5DX | On-Off SwitchWear part | 1 | ₹367 | |
| 1 617 S02 5FG | Cable HolderWear part | 1 | ₹326 | |
| 1 617 S02 5DY | On-Off SwitchWear part | 1 | ₹888 | |
| Grommet | 1 | ₹176 | ||
| Tapping Screw | 4 | ₹58 | ||
| 1 617 S02 5FJ | Power supply cordWear part | 1 | ₹783 | |
| gasket | 2 | ₹101 | ||
| Nameplate | 1 | On request | ||
| Guide Bar | 1 | ₹441 | ||
| Manufacturer's nameplate | 1 | On request | ||
| Guide Bar | 1 | ₹441 | ||
| Screw | 4 | ₹64 | ||
| Screw | 6 | ₹60 | ||
| Clamp | 1 | ₹501 | ||
| Washer | 6 | ₹53 | ||
| Guide Pin | 1 | ₹321 | ||
| Toothed rack | 1 | ₹908 | ||
| Guide Pin | 1 | ₹353 | ||
| Washer | 2 | ₹53 | ||
| null | 1 | ₹727 | ||
| Screw | 2 | ₹58 | ||
| Connector | 1 | ₹152 | ||
| Screw | 4 | ₹59 | ||
| Guard | 1 | ₹525 | ||
| Nut | 4 | ₹54 | ||
| Screw | 2 | ₹67 | ||
| Washer | 1 | ₹56 | ||
| Fuse | 2 | ₹130 | ||
| Fuse Holder | 1 | ₹111 | ||
| Brush Holder | 2 | ₹260 | ||
| 1 617 S02 5AZ | Ball BearingWear part | 1 | ₹211 | |
| Screw | 4 | ₹60 | ||
| 1 617 S02 5B0 | SpindleWear part | 1 | ₹1,918 | |
| Washer | 4 | ₹63 | ||
| Oil Separator | 1 | ₹97 | ||
| Tapping Screw | 8 | ₹69 | ||
| Suppressor | 1 | ₹139 | ||
| Housing Cover | 1 | ₹455 | ||
| 1 617 S02 5A7 | Carbon BrushWear part | 1 | ₹200 | |
| Motor Housing | 1 | ₹952 | ||
| 1 617 S02 5AE | FieldWear part | 1 | ₹2,108 | |
| Tapping Screw | 2 | ₹71 | ||
| Baffle | 1 | ₹117 | ||
| O-Ring | 1 | ₹66 | ||
| 1 617 S02 5AJ | Ball BearingWear part | 3 | ₹122 | |
| Dowel pin | 1 | ₹68 | ||
| 1 617 S02 5AL | ArmatureWear part | 1 | ₹3,307 | |
| Circlip | 1 | ₹63 | ||
| 1 617 S02 5AN | Ball BearingWear part | 1 | ₹186 | |
| Intermediate Flange | 1 | ₹618 | ||
| Circlip | 1 | ₹62 | ||
| Gasket | 1 | ₹84 | ||
| Toothed rack | 1 | ₹848 | ||
| 1 617 S02 5AU | Toothed GearWear part | 1 | ₹768 | |
| Washer | 1 | ₹64 | ||
| 1 617 S02 5AW | Ball BearingWear part | 1 | ₹246 | |
| Rubber Ring | 2 | ₹96 | ||
| Gear Housing | 1 | ₹2,474 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the switch part number for the Bosch GBM 38?
Switch Plate, Bosch part number 1 617 S02 5F9 (diagram item 127). List price ₹157.
Which power cord fits the Bosch GBM 38?
Cable Conduit, Bosch part number 1 617 S02 5FA (diagram item 128). List price ₹237.
What is the gear set part number for the Bosch GBM 38?
Pinion Shaft, Bosch part number 1 617 S02 5DT (diagram item 106). List price ₹1,686.
Which bearings does the Bosch GBM 38 use?
Ball Bearing, Bosch part number 1 617 S02 5AZ (diagram item 26). List price ₹211.
What is the spindle part number for the Bosch GBM 38?
Spindle, Bosch part number 1 617 S02 5B0 (diagram item 27). List price ₹1,918.
Which carbon brushes fit the Bosch GBM 38?
Carbon Brush, Bosch part number 1 617 S02 5A7 (diagram item 801). List price ₹200.
