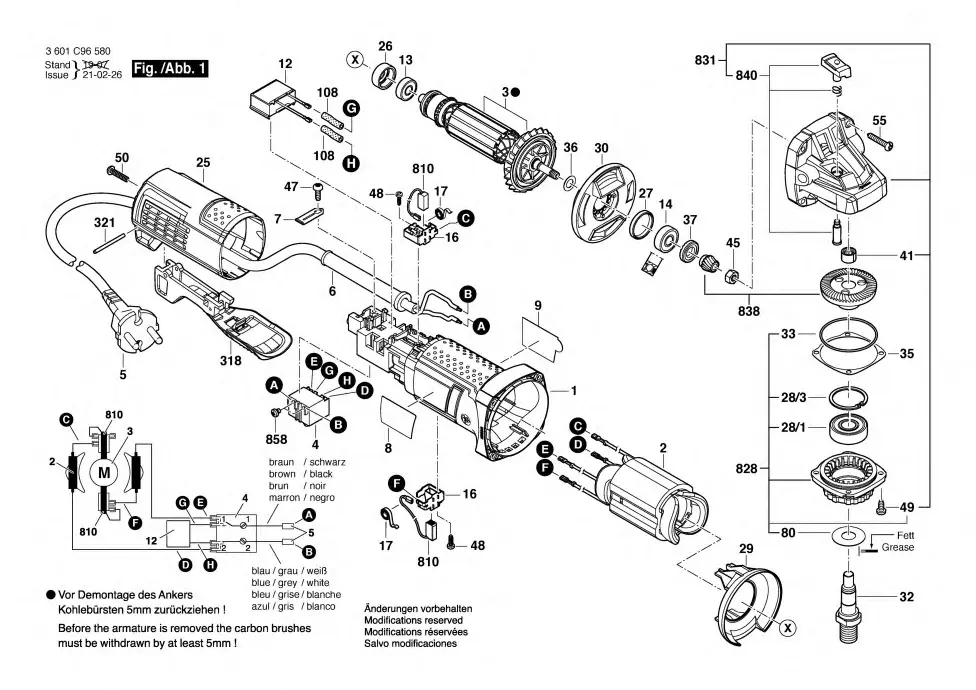

Bosch GWS 9-125 P Angle Grinder spare parts

    Tool number 3 601 C96 5F4 · 220 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    View the Bosch GWS 9-125 P →
    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    1 604 220 59G

    ₹712

    Field

    1 600 910 018

    ₹62

    Needle bearing Ø8XØ12X8

    1 604 010 BN1

    ₹910

    Armature

    1 607 200 31X

    ₹311

    Switch

    1 619 P15 857

    On request

    Power supply cord IND

    1 619 P11 715

    ₹168

    Carbon-Brush Set

    1 619 P14 559

    ₹400

    Set Of Gears

    1 619 P06 419

    ₹421

    Grinding Spindle M10,SW12

    All parts

    ItemPart numberDescriptionQtyList price
    1 619 P10 961Motor Housing1₹183
    1 619 P14 544Rotary shaft lip seal1₹40
    1 604 220 59GFieldWear part1₹712
    1 600 910 018Needle bearing Ø8XØ12X8Wear part1₹62
    1 604 010 BN1ArmatureWear part1₹910
    2 915 011 007Hex Nut DIN 934-M6-8-A1₹28
    1 607 200 31XSwitchWear part1₹311
    2 609 110 052Special Screw1₹50
    1 619 P15 857Power supply cord INDWear part1On request
    1 619 P00 220Torx Oval-Head Screw 3x102₹33
    2 600 703 012Grommet Ø6.5-Ø6.9X95MM1₹28
    1 603 435 068Thread-forming tap. Screw4₹48
    1 601 302 017Fastening Clamp1₹33
    1 619 P00 105Torx Oval-Head Screw1₹33
    1 619 P14 852Manufacturer's nameplate1On request
    1 619 P01 066Torx Oval-Head Screw4₹33
    1 619 P08 829groove ball bearingWear part1₹230
    1 619 P09 390Cover Disc1₹77
    1 619 P13 103groove ball bearingWear part1₹189
    1 619 P14 813Switch-PawlWear part1₹126
    1 619 P01 811Brush Holder2₹33
    1 619 P10 979Pin1₹33
    1 604 652 013Spiral Spring2₹49
    1 619 P11 715Carbon-Brush SetWear part1₹168
    1 619 P14 667Housing Cover1₹155
    1 619 P07 451Bearing FlangeWear part1₹490
    1 600 502 023Intermediate Ring1₹77
    1 619 P12 186Gear Housing1₹542
    1 600 206 025Rubber Ring1₹31
    1 619 P14 559Set Of GearsWear part1₹400
    1 619 P07 440Ball BearingWear part1₹232
    1 619 P12 188Push Button1₹90
    2 916 660 013Retaining clip DIN 472-32X1.2 MM1₹53
    2 910 641 081Oval-Head Screw2₹57
    1 619 P10 970Air-Deflector Ring1₹71
    1 619 P14 139Air Distributor1₹64
    1 619 P06 419Grinding Spindle M10,SW12Wear part1₹421
    1 619 P02 820O-Ring 44.0X1.0 MM1₹33
    1 619 P02 821Shim 0.1 MM1₹33
    1 619 P02 822Shim 0.2 MM1₹33
    1 619 P00 987Washer1₹33
    1 619 P10 681Auxiliary Handle1₹191
    1 619 P09 976Round Nut With 2 Holes1₹57
    1 619 P08 928Pin-Type Face-Wrench1₹41
    1 619 P12 159Clam ping Flange Ø22.3xØ42 MM1₹54
    1 600 210 039O-Ring 20.35x1.78 MM1₹34
    1 600 A00 XU7Protective Cover Ø125 MM1₹604
    1 615 430 020Grease Tube 225 ML1₹1,604
    1 605 430 003Grease Tube 225 ML1₹1,733

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the field (stator) part number for the Bosch GWS 9-125 P?

    Field, Bosch part number 1 604 220 59G (diagram item 2). List price ₹712.

    Which bearings does the Bosch GWS 9-125 P use?

    Needle bearing Ø8XØ12X8, Bosch part number 1 600 910 018 (diagram item 41). List price ₹62.

    What is the armature part number for the Bosch GWS 9-125 P?

    Armature, Bosch part number 1 604 010 BN1 (diagram item 3). List price ₹910.

    What is the switch part number for the Bosch GWS 9-125 P?

    Switch, Bosch part number 1 607 200 31X (diagram item 4). List price ₹311.

    Which power cord fits the Bosch GWS 9-125 P?

    Power supply cord IND, Bosch part number 1 619 P15 857 (diagram item 5).

    Which carbon brushes fit the Bosch GWS 9-125 P?

    Carbon-Brush Set, Bosch part number 1 619 P11 715 (diagram item 810). List price ₹168.
