Bosch GWS 800 Angle Grinder spare parts

    Tool number 3 601 C94 3F0 · 230 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    View the Bosch GWS 800 →
    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    1 619 P02 825

    ₹68

    Bevel Gear

    1 604 220 59E

    ₹413

    Field

    1 600 200 029

    ₹33

    Plain bearing

    1 604 010 BM9

    ₹612

    Armature

    1 607 200 38G

    ₹85

    Switch

    1 619 P11 856

    ₹29

    Connection Cable

    1 619 P11 715

    ₹168

    Carbon-Brush Set

    1 603 523 111

    ₹105

    Grinding Spindle M10.

    All parts

    ItemPart numberDescriptionQtyList price
    Motor Housing1₹151
    1 619 P02 825Bevel GearWear part1₹68
    1 604 220 59EFieldWear part1₹413
    1 600 200 029Plain bearingWear part1₹33
    1 604 010 BM9ArmatureWear part1₹612
    2 915 011 007Hex Nut DIN 934-M6-8-A1₹28
    1 607 200 38GSwitchWear part1₹85
    2 609 110 052Special Screw1₹50
    F 002 G31 081Grommet1₹33
    1 619 P00 220Torx Oval-Head Screw2₹33
    1 601 302 017Fastening Clamp1₹33
    1 619 P12 666Thread-forming tap. Screw4₹43
    1 619 P14 660groove ball bearingWear part1₹69
    1 619 P00 105Torx Oval-Head Screw1₹33
    1 619 P13 103groove ball bearingWear part1₹189
    1 619 P01 066Torx Oval-Head Screw4₹33
    1 619 P01 811Brush Holder2₹33
    1 619 P09 390Cover Disc1₹77
    1 604 652 013Spiral Spring2₹49
    1 619 P11 856Connection CableWear part1₹29
    Housing Cover1₹75
    F 002 G30 042Auxiliary Handle1₹40
    1 600 502 023Intermediate Ring1₹77
    1 600 A00 XU5Protective Cover Ø100 MM1₹135
    1 600 206 025Rubber Ring1₹31
    1 619 P09 976Round Nut With 2 Holes1₹57
    1 619 P07 440Ball BearingWear part1₹232
    1 600 A00 F93Pin-Type Face-Wrench1₹34
    2 916 660 013Retaining clip DIN1₹53
    1 619 P12 159Clamping-Flange1₹54
    1 619 P10 970Air-Deflector Ring1₹71
    1 604 460 7A4Power supply cordWear part1₹180
    1 619 P14 139Air Distributor1₹64
    1 619 P11 715Carbon-Brush SetWear part1₹168
    1 603 523 111Grinding Spindle M10.Wear part1₹105
    1 619 P07 451Bearing FlangeWear part1₹490
    1 619 P02 820O-Ring 44.0X1.0 MM1₹33
    1 619 P12 186Gear Housing1₹542
    1 619 P02 821Shim 0.1 MM1₹33
    1 619 P12 188Push Button1₹90
    1 619 P02 822Shim 0.2 MM1₹33
    1 615 430 020Grease Tube 225 ML1₹1,604
    1 619 P00 987Washer1₹33
    1 600 100 033Cover Disc1₹28
    1 619 P02 823Crown GearWear part1₹119

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the gear set part number for the Bosch GWS 800?

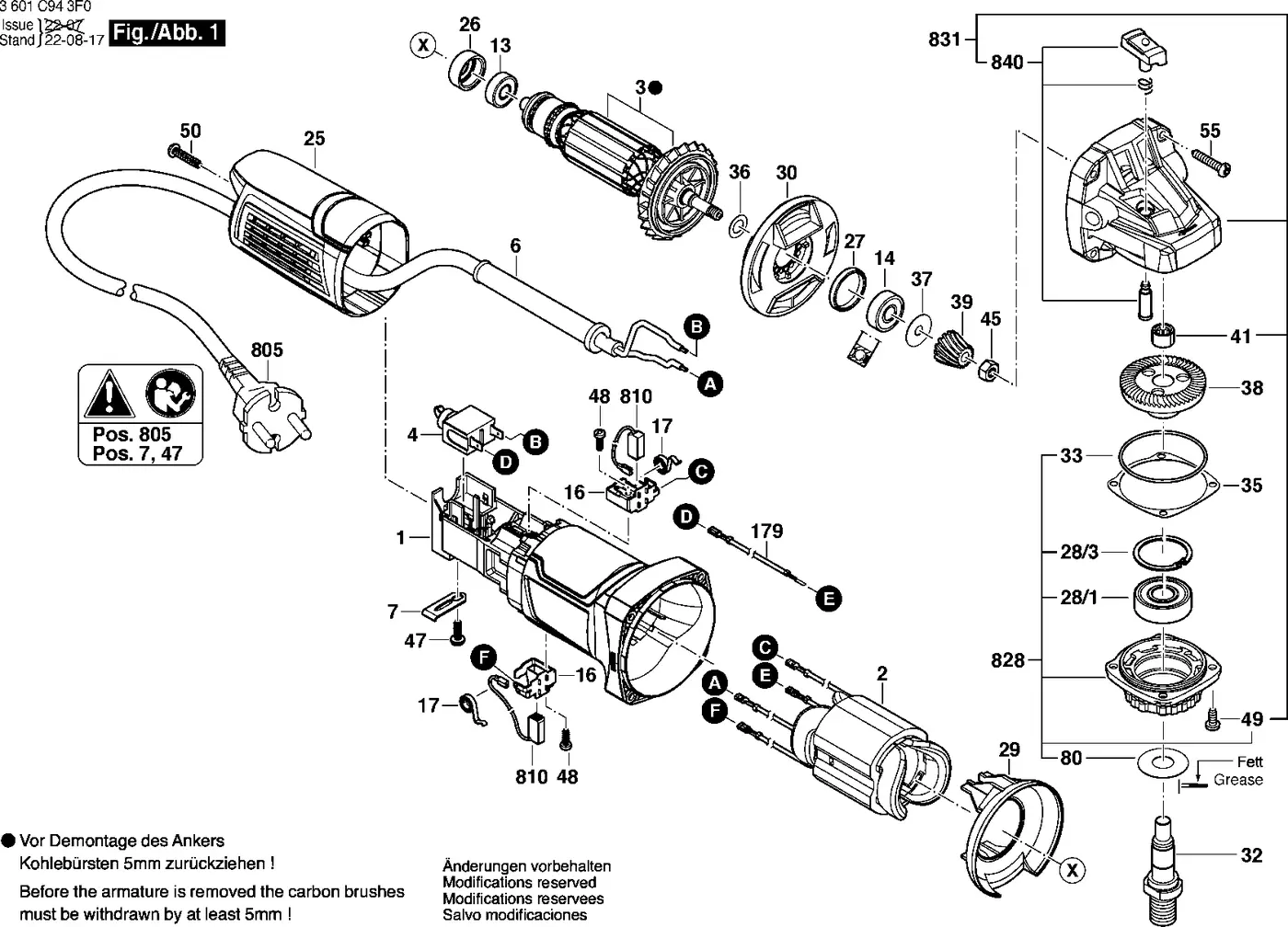

    Bevel Gear, Bosch part number 1 619 P02 825 (diagram item 39). List price ₹68.

    What is the field (stator) part number for the Bosch GWS 800?

    Field, Bosch part number 1 604 220 59E (diagram item 2). List price ₹413.

    Which bearings does the Bosch GWS 800 use?

    Plain bearing, Bosch part number 1 600 200 029 (diagram item 41). List price ₹33.

    What is the armature part number for the Bosch GWS 800?

    Armature, Bosch part number 1 604 010 BM9 (diagram item 3). List price ₹612.

    What is the switch part number for the Bosch GWS 800?

    Switch, Bosch part number 1 607 200 38G (diagram item 4). List price ₹85.

    Which power cord fits the Bosch GWS 800?

    Connection Cable, Bosch part number 1 619 P11 856 (diagram item 179). List price ₹29.
