Bosch GSB 600 Drill spare parts
Tool number 3 601 AA0 3F0 · 230 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹246
Drilling Spindle
₹350
Field 220-230 V
₹262
Chuck
₹290
Switch
₹123
Power supply cord IND
Ball Bearing 8X22X7
₹142
Conversion Gear
₹671
Armature
Carbon-Brush Set
All parts

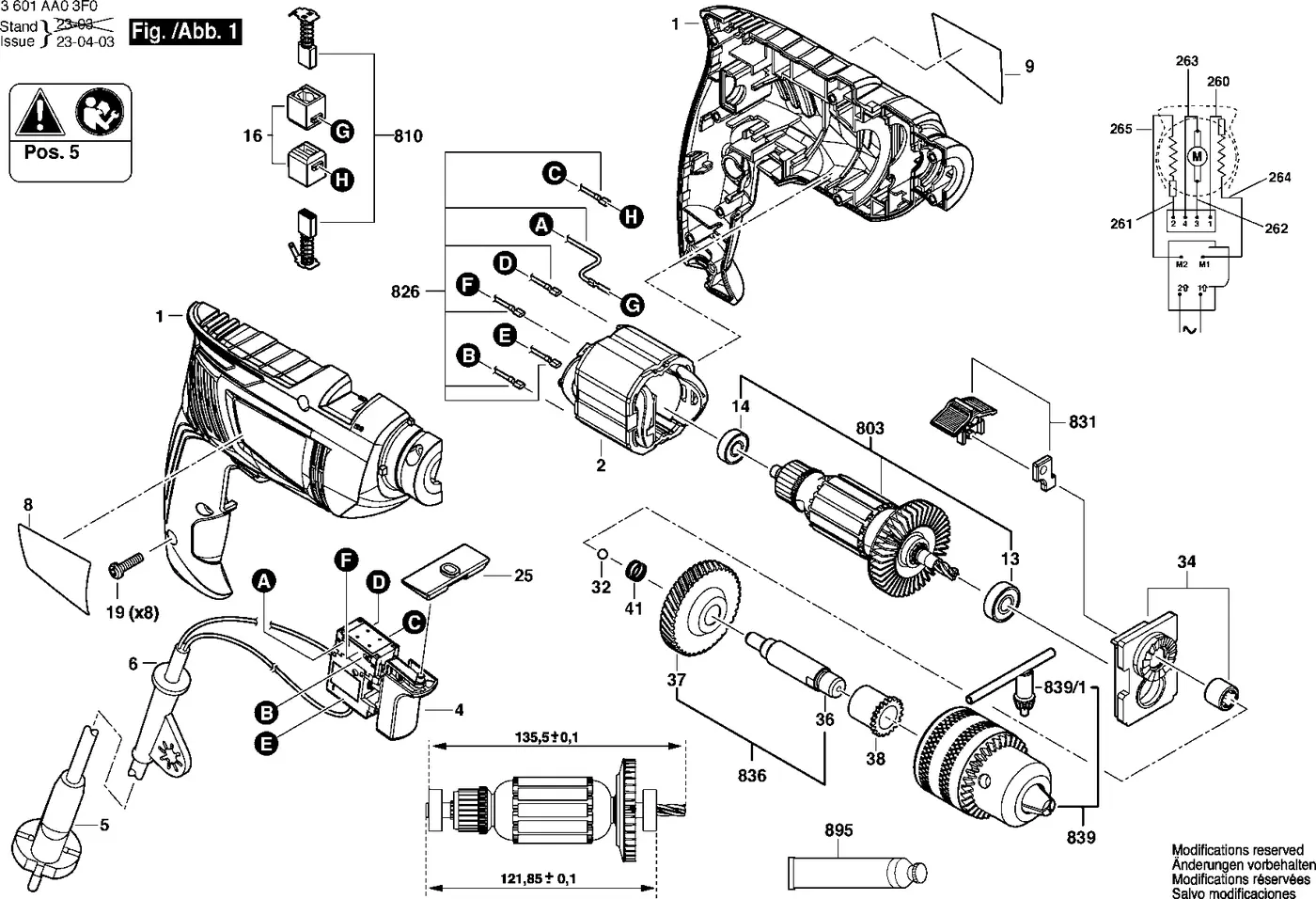

| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Motor Housing | 1 | ₹317 | ||
| 1 600 A02 UH5 | Drilling SpindleWear part | 1 | ₹246 | |
| 1 616 B10 269 | Field 220-230 VWear part | 1 | ₹350 | |
| 2 608 571 076 | ChuckWear part | 1 | ₹262 | |
| 1 607 200 394 | SwitchWear part | 1 | ₹290 | |
| 2 607 950 007 | Chuck Wrench SG2Wear part | 1 | ₹89 | |
| 1 604 460 72V | Power supply cord INDWear part | 1 | ₹123 | |
| 3 605 430 003 | Grease Tube ALBIDA | 1 | ₹1,610 | |
| 2 600 707 059 | Grommet Ø6.9 MM | 1 | ₹75 | |
| Nameplate | 1 | On request | ||
| Manufacturer's nameplate | 1 | On request | ||
| 2 609 110 153 | Ball Bearing 8X22X7Wear part | 1 | ₹48 | |
| 2 609 110 491 | Ball BearingWear part | 1 | ₹43 | |
| Brush Holder | 2 | ₹55 | ||
| 2 603 490 022 | Screw 4X16 | 8 | ₹30 | |
| 1 619 X10 004 | Reversing SwitchWear part | 1 | ₹29 | |
| 1 903 230 010 | Ball DIN 5401-5.5MM-III-ST | 1 | ₹34 | |
| 1 600 A02 UH3 | Bearing BracketWear part | 1 | ₹357 | |
| 1 619 X10 009 | Drilling SpindleWear part | 1 | ₹121 | |
| 2 606 320 092 | Conversion GearWear part | 1 | ₹142 | |
| Sintered-Metal Bushing | 1 | ₹41 | ||
| 2 604 616 006 | Compression Spring | 1 | ₹55 | |
| 2 603 001 009 | Depth-Gauge | 1 | ₹236 | |
| 2 609 199 582 | Auxiliary Handle | 1 | ₹532 | |
| 1 604 010 BU4 | ArmatureWear part | 1 | ₹671 | |
| 2 610 391 290 | Carbon-Brush SetWear part | 1 | ₹48 | |
| 1 600 A02 W6S | Connecting CableWear part | 1 | ₹107 | |
| 1 600 A02 UH4 | Change-Over SwitchWear part | 1 | ₹42 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the spindle part number for the Bosch GSB 600?
Drilling Spindle, Bosch part number 1 600 A02 UH5 (diagram item 836). List price ₹246.
What is the field (stator) part number for the Bosch GSB 600?
Field 220-230 V, Bosch part number 1 616 B10 269 (diagram item 2). List price ₹350.
Which chuck fits the Bosch GSB 600?
Chuck, Bosch part number 2 608 571 076 (diagram item 839). List price ₹262.
What is the switch part number for the Bosch GSB 600?
Switch, Bosch part number 1 607 200 394 (diagram item 4). List price ₹290.
Which power cord fits the Bosch GSB 600?
Power supply cord IND, Bosch part number 1 604 460 72V (diagram item 5). List price ₹123.
Which bearings does the Bosch GSB 600 use?
Ball Bearing 8X22X7, Bosch part number 2 609 110 153 (diagram item 13). List price ₹48.
