Bosch GSB 450 Impact Drill spare parts
Tool number 3 601 B16 1FA · 230 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹238
Chuck Ø1.0-10 MM. 3/8"
₹423
Field 230V
₹400
Switch
₹123
Power supply cord IND
Ball Bearing 8X22X7
₹168
Spindle
₹142
Conversion Gear
₹625
Armature 220-240V
Carbon-Brush Set
All parts

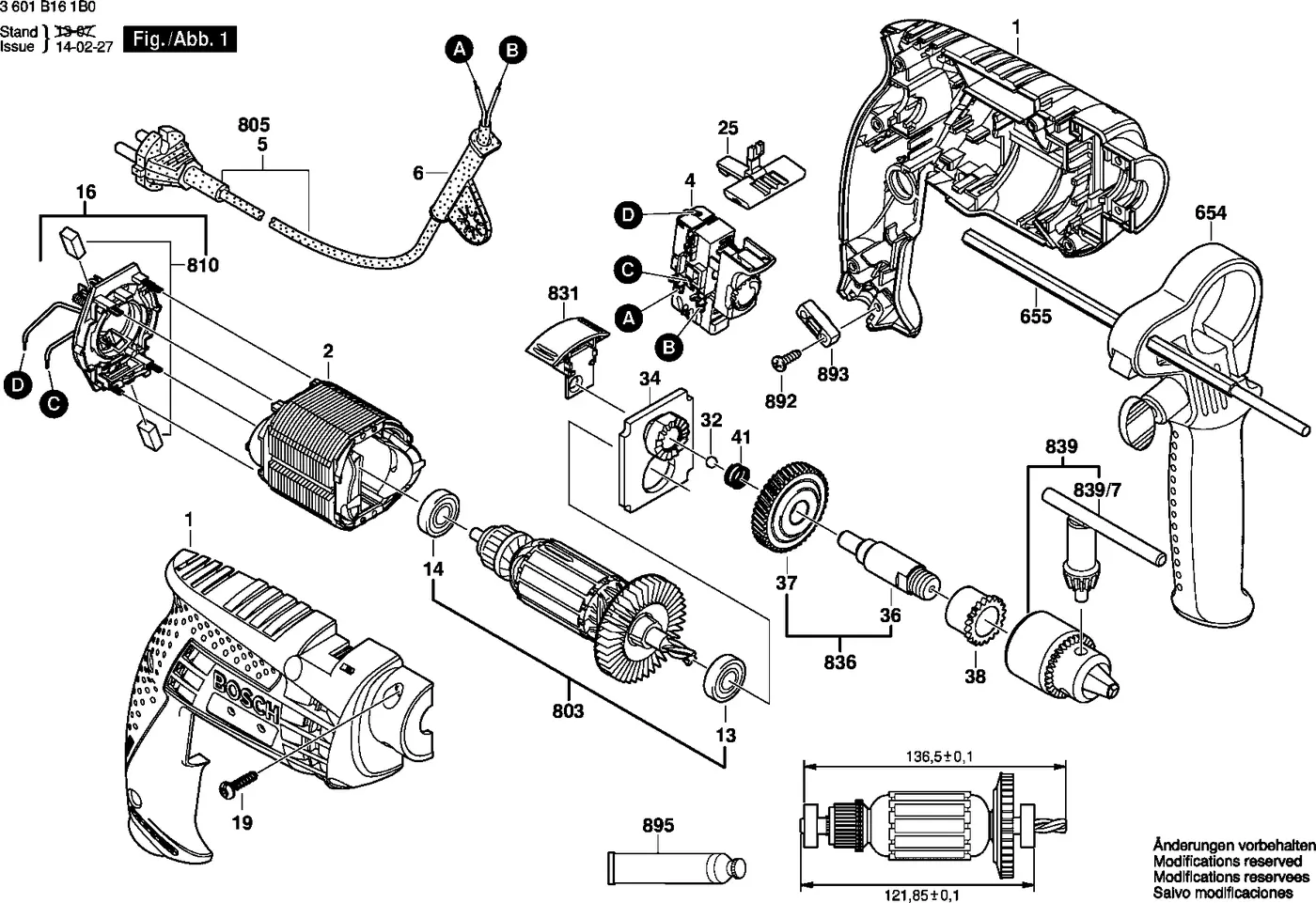

| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| 2 609 100 427 | Motor Housing | 1 | ₹390 | |
| 1 608 571 079 | Chuck Ø1.0-10 MM. 3/8"Wear part | 1 | ₹238 | |
| 2 604 220 718 | Field 230VWear part | 1 | ₹423 | |
| 2 607 950 007 | Chuck Wrench SG2Wear part | 1 | ₹89 | |
| 2 607 200 623 | SwitchWear part | 1 | ₹400 | |
| 2 603 490 022 | Screw 4X16 | 2 | ₹30 | |
| 1 604 460 72V | Power supply cord INDWear part | 1 | ₹123 | |
| 2 601 035 001 | Cable ClipWear part | 1 | ₹49 | |
| 2 600 707 059 | Grommet Ø6.9 MM | 1 | ₹75 | |
| 3 605 430 003 | Grease Tube ALBIDA | 1 | ₹1,610 | |
| 2 609 110 153 | Ball Bearing 8X22X7Wear part | 1 | ₹48 | |
| 2 609 110 491 | Ball BearingWear part | 1 | ₹43 | |
| Brush Plate | 1 | ₹266 | ||
| 2 603 490 022 | Screw 4X16 | 7 | ₹30 | |
| 2 609 100 580 | Lever | 1 | ₹50 | |
| 1 903 230 010 | Ball DIN 5401-5.5MM-III-ST | 1 | ₹34 | |
| 2 609 199 073 | Bearing BracketWear part | 1 | ₹116 | |
| 2 609 110 440 | SpindleWear part | 1 | ₹168 | |
| 2 606 320 092 | Conversion GearWear part | 1 | ₹142 | |
| 2 609 110 442 | Sintered-Metal Bushing | 1 | ₹50 | |
| 2 604 616 006 | Compression Spring | 1 | ₹55 | |
| 2 602 025 094 | Auxiliary Handle | 1 | ₹173 | |
| 2 603 001 009 | Depth-Gauge | 1 | ₹236 | |
| 2 609 005 615 | Depth-Gauge | 1 | ₹100 | |
| 2 609 120 232 | Armature 220-240VWear part | 1 | ₹625 | |
| Label | 1 | On request | ||
| 2 610 391 290 | Carbon-Brush SetWear part | 1 | ₹48 | |
| 2 609 160 127 | Change-Over SwitchWear part | 1 | ₹79 | |
| 2 609 160 122 | Drilling SpindleWear part | 1 | ₹319 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
Which chuck fits the Bosch GSB 450?
Chuck Ø1.0-10 MM. 3/8", Bosch part number 1 608 571 079 (diagram item 839). List price ₹238.
What is the field (stator) part number for the Bosch GSB 450?
Field 230V, Bosch part number 2 604 220 718 (diagram item 2). List price ₹423.
What is the switch part number for the Bosch GSB 450?
Switch, Bosch part number 2 607 200 623 (diagram item 4). List price ₹400.
Which power cord fits the Bosch GSB 450?
Power supply cord IND, Bosch part number 1 604 460 72V (diagram item 5). List price ₹123.
Which bearings does the Bosch GSB 450 use?
Ball Bearing 8X22X7, Bosch part number 2 609 110 153 (diagram item 13). List price ₹48.
What is the spindle part number for the Bosch GSB 450?
Spindle, Bosch part number 2 609 110 440 (diagram item 36). List price ₹168.
