Bosch GEX 34-150 Random Orbit Sander spare parts

    Tool number 3 601 C72 8F0 · 230 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    View the Bosch GEX 34-150 →
    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    2 604 220 529

    ₹1,128

    Field 230-240V

    2 604 011 028

    ₹2,095

    Armature 220-240V

    2 600 905 086

    ₹121

    groove ball bearing 7X19X6

    2 607 200 260

    ₹247

    Switch

    2 601 035 001

    ₹49

    Cable Clip

    1 607 014 117

    ₹319

    Carbon Brush

    All parts

    ItemPart numberDescriptionQtyList price
    2 605 104 410Housing Section BLUE1₹792
    2 603 435 042Thread-forming tap. Screw4₹55
    2 604 220 529Field 230-240VWear part1₹1,128
    2 600 282 015Suction Hood1₹1,002
    2 604 011 028Armature 220-240VWear part1₹2,095
    2 601 328 047Air-Deflector Ring1₹162
    2 600 905 086groove ball bearing 7X19X6Wear part1₹121
    2 601 328 048Suction Piece1₹238
    2 606 610 076Fan1₹127
    2 601 328 049Suction Piece1₹238
    2 607 200 260SwitchWear part1₹247
    2 601 035 002Pusher1₹160
    2 601 035 001Cable ClipWear part1₹49
    2 610 364 015Hexagon Socket Screw1₹95
    Manufacturer's nameplate1On request
    2 607 230 119Speed governor 230-240V1₹1,325
    2 600 905 034groove ball bearingWear part1₹213
    2 604 465 090Suppression Filter2₹223
    Brush Holder2₹65
    2 605 411 069Dust Bag 1 PIECE1₹97
    2 603 435 089Torx Oval-Head Screw3₹60
    Adapter1₹383
    2 603 410 001Socket head cap screw2₹55
    1 607 000 386Power supply cord EUWear part1₹1,408
    2 603 490 022Screw 4X166₹30
    2 600 703 017Grommet Ø6.4-Ø7.2X761₹79
    1 600 A00 RD6Special Screw2₹80
    Nameplate1On request
    2 603 490 017Torx Oval-Head Screw4₹79
    1 607 014 117Carbon BrushWear part1₹319
    2 600 101 047Shim 0.3 MM1₹87
    Fan1₹2,057
    2 600 100 041Plain Washer DIN1₹54
    2 601 329 053Contact Strap1₹55
    Backing Pad Ø1501On request
    Tapping Screw2₹30
    1 600 A01 5G7Hex Socket Head Cap1₹52
    2 605 500 124Housing Cover BLUE1₹454
    2 915 121 006Square Nut DIN 562-M6-041₹80
    Friction Ring1₹308

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the field (stator) part number for the Bosch GEX 34-150?

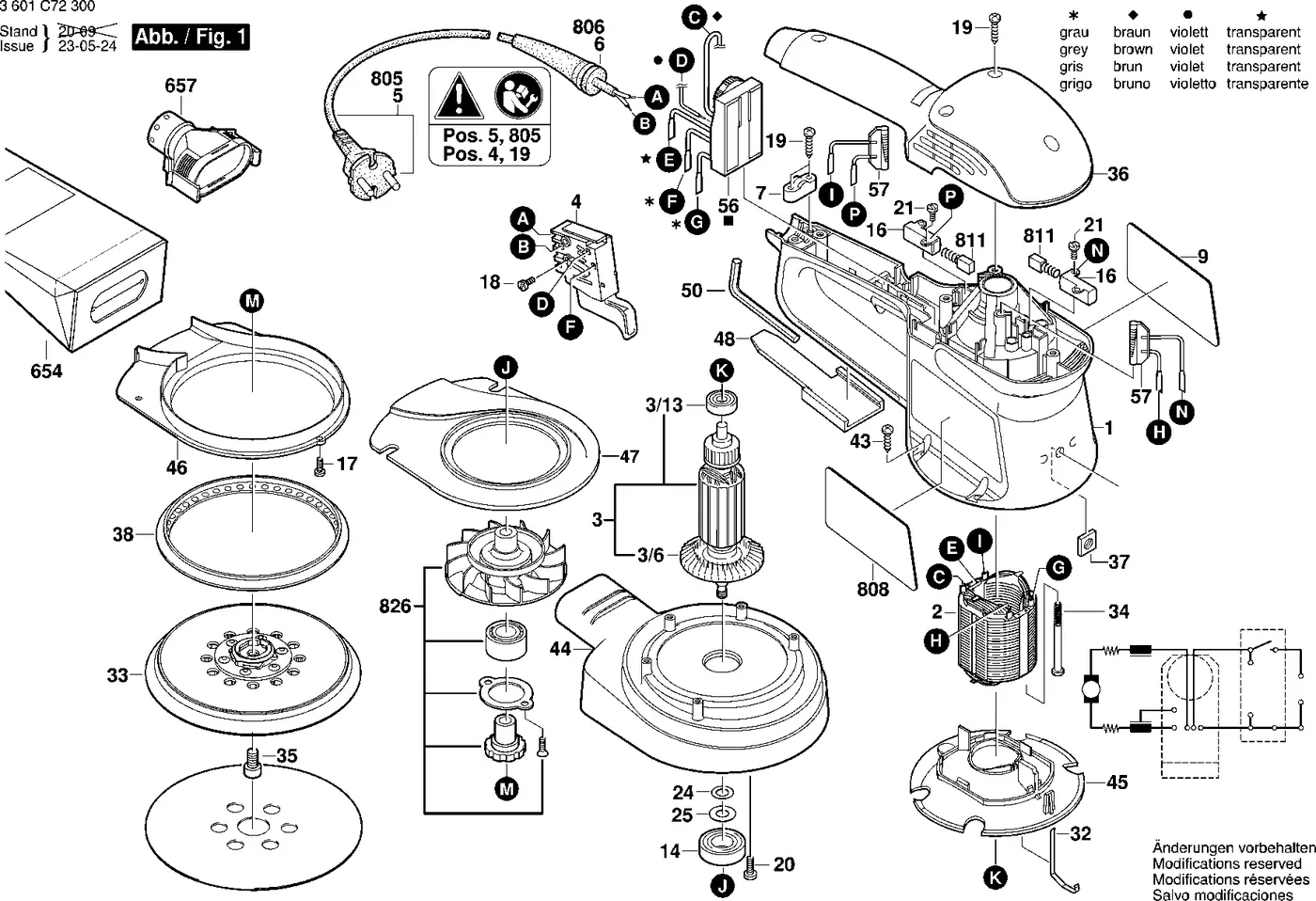

    Field 230-240V, Bosch part number 2 604 220 529 (diagram item 2). List price ₹1,128.

    What is the armature part number for the Bosch GEX 34-150?

    Armature 220-240V, Bosch part number 2 604 011 028 (diagram item 3). List price ₹2,095.

    Which bearings does the Bosch GEX 34-150 use?

    groove ball bearing 7X19X6, Bosch part number 2 600 905 086 (diagram item 3/13). List price ₹121.

    What is the switch part number for the Bosch GEX 34-150?

    Switch, Bosch part number 2 607 200 260 (diagram item 4). List price ₹247.

    Which power cord fits the Bosch GEX 34-150?

    Cable Clip, Bosch part number 2 601 035 001 (diagram item 7). List price ₹49.

    Which carbon brushes fit the Bosch GEX 34-150?

    Carbon Brush, Bosch part number 1 607 014 117 (diagram item 811). List price ₹319.
