Bosch GDC 140 Marble Cutter spare parts

    Tool number 3 601 CA4 0F1 · 220 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    View the Bosch GDC 140 →
    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    1 604 220 5BC

    ₹628

    Field 230V

    1 604 460 77G

    ₹174

    Power supply cord

    2 600 905 110

    ₹206

    groove ball bearing 8X22X7

    1 619 P20 450

    ₹96

    Pinion

    1 619 P06 287

    ₹98

    Carbon Brush Holder

    1 619 P20 278

    ₹49

    Chuck Wrench

    1 604 010 BV0

    ₹1,033

    Armature

    1 607 200 39R

    ₹151

    Switch

    1 607 200 39S

    ₹609

    Spindle

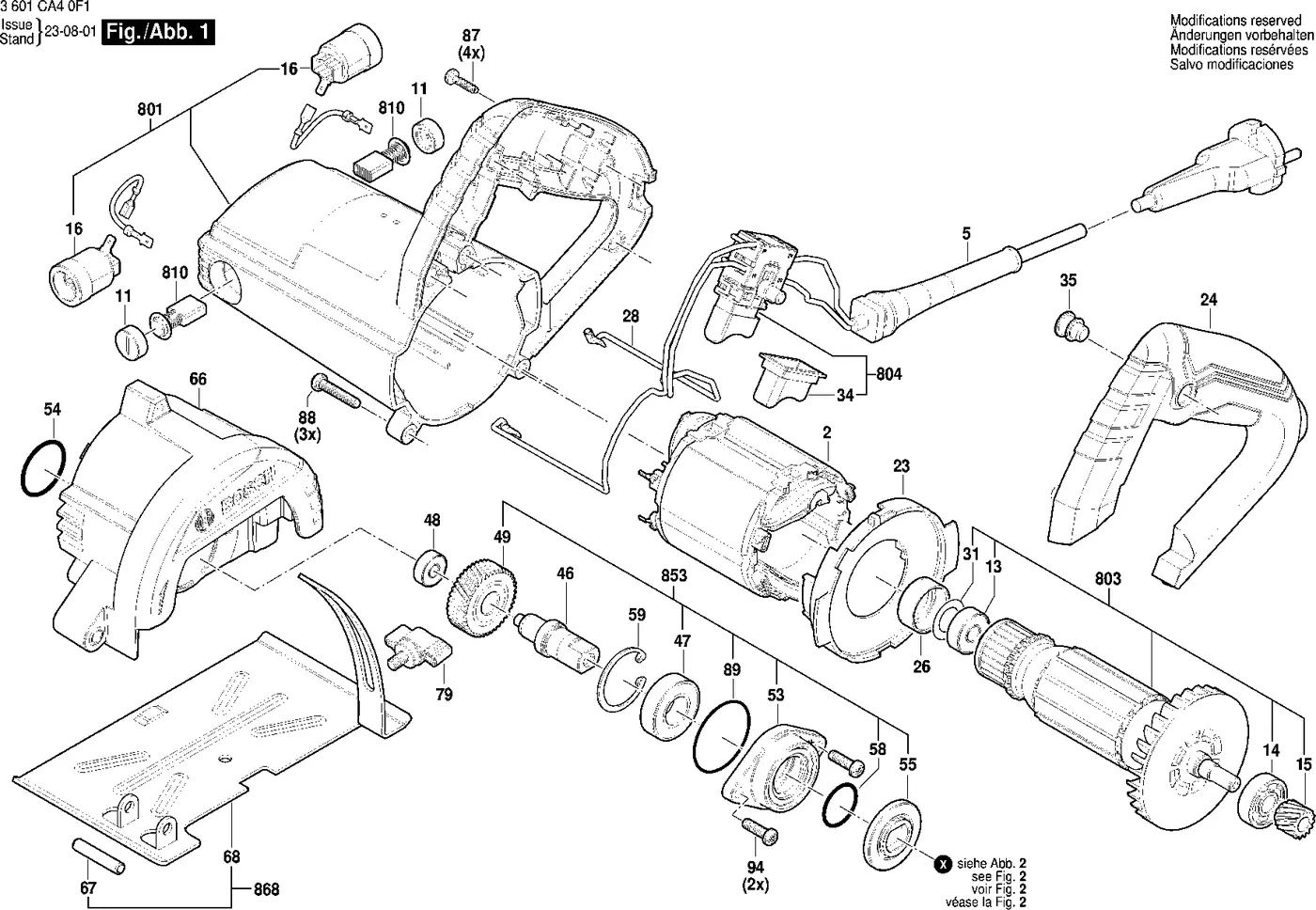

    All parts

    ItemPart numberDescriptionQtyList price
    1 604 220 5BCField 230VWear part1₹628
    2 916 660 013Retaining clip DIN1₹53
    1 604 460 77GPower supply cordWear part1₹174
    Upper guard1₹581
    1 619 P06 286Insulating Cap2₹85
    2 917 760 156Slotted Spring Pin 6X321₹40
    2 600 905 110groove ball bearing 8X22X7Wear part1₹206
    Base Plate1₹263
    1 619 P00 290groove ball bearingWear part1₹173
    1 603 480 02EWing Screw1₹52
    1 619 P20 450PinionWear part1₹96
    2 603 490 022Screw 4X164₹30
    1 619 P06 287Carbon Brush HolderWear part2₹98
    Thread-forming tap. Screw2₹31
    Baffle1₹40
    F 000 640 008O-Ring1₹40
    Handle1₹75
    Thread-forming tap. Screw2₹31
    Rubber Ring1₹40
    1 619 P20 278Chuck WrenchWear part1₹49
    1 600 A00 Z85Connecting CableWear part2₹36
    2 610 364 015Hexagon Socket Screw1₹95
    Shim washer 0.2 MM1₹46
    Housing Set1₹359
    Protection cover1₹47
    1 604 010 BV0ArmatureWear part1₹1,033
    Protection cover1₹70
    1 607 200 39RSwitchWear part1₹151
    Output Shaft1₹102
    1 619 P10 371Carbon-Brush SetWear part1₹88
    2 610 015 361groove ball bearingWear part1₹76
    1 607 200 39SSpindleWear part1₹609
    1 619 P00 285groove ball bearingWear part1₹43
    Base Plate1₹268
    1 619 P20 451GearWear part1₹144
    Flange1₹77
    F 000 640 007O-Ring1₹40
    Sealing washer1₹51
    Washer1₹62
    1 619 P00 278Hex Screw1₹65
    O-Ring1₹31

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the field (stator) part number for the Bosch GDC 140?

    Field 230V, Bosch part number 1 604 220 5BC (diagram item 2). List price ₹628.

    Which power cord fits the Bosch GDC 140?

    Power supply cord, Bosch part number 1 604 460 77G (diagram item 5). List price ₹174.

    Which bearings does the Bosch GDC 140 use?

    groove ball bearing 8X22X7, Bosch part number 2 600 905 110 (diagram item 13). List price ₹206.

    What is the gear set part number for the Bosch GDC 140?

    Pinion, Bosch part number 1 619 P20 450 (diagram item 15). List price ₹96.

    Which carbon brushes fit the Bosch GDC 140?

    Carbon Brush Holder, Bosch part number 1 619 P06 287 (diagram item 16). List price ₹98.

    Which chuck fits the Bosch GDC 140?

    Chuck Wrench, Bosch part number 1 619 P20 278 (diagram item 651). List price ₹49.
