Wendt STAR Single Point Diamond Dresser

36 sizes · Last updated 25 Oct 2026

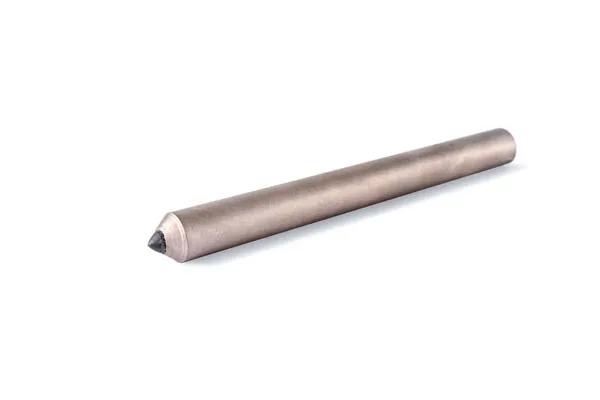

A single point dresser holds one selected Congo round diamond in a metal matrix on a steel shank. It is the everyday tool for truing and dressing conventional grinding wheels on surface, cylindrical and tool-and-cutter grinders. Choose the carat size to suit the wheel size and the finish you need, and the grade (A, B or C) to suit the budget.

MRP ₹316 – ₹6,193

MRP inclusive of 18% GST, as per the Wendt STAR MRP price list 2026-27. Prices may change without notice; call to confirm.

Features

Selected Congo round natural diamond
Three grades: A, B and C
Carat sizes from 0.25 to 5.00 ct
½" x 5" shank up to 3.50 ct; ⅝" x 5" from 4.00 ct

Used for

Applications: OD dressing, Side dressing, Truing

Machines: Surface grinder, Cylindrical grinder, Tool & cutter grinder

Call +91 95123 49969 WhatsApp for price

Specifications

Diamond	Congo round, natural
Grades	A, B, C
Carat range	0.25–5.00 ct
Shank	½" x 5" (to 3.50 ct), ⅝" x 5" (4.00–5.00 ct)

Sizes, codes and prices

Grade	Carat	Shank	MRP (₹)
A	0.25	½" x 5"	₹445
A	0.35	½" x 5"	₹485
A	0.50	½" x 5"	₹620
A	0.75	½" x 5"	₹1,046
A	1.00	½" x 5"	₹1,356
A	1.50	½" x 5"	₹2,013
A	2.00	½" x 5"	₹2,674
A	2.50	½" x 5"	₹3,216
A	3.00	½" x 5"	₹3,989
A	3.50	½" x 5"	₹4,647
A	4.00	⅝" x 5"	₹5,226
A	5.00	⅝" x 5"	₹6,193
B	0.25	½" x 5"	₹360
B	0.35	½" x 5"	₹416
B	0.50	½" x 5"	₹498
B	0.75	½" x 5"	₹892
B	1.00	½" x 5"	₹1,133
B	1.50	½" x 5"	₹1,666
B	2.00	½" x 5"	₹2,242
B	2.50	½" x 5"	₹2,818
B	3.00	½" x 5"	₹3,454
B	3.50	½" x 5"	₹4,049
B	4.00	⅝" x 5"	₹4,565
B	5.00	⅝" x 5"	₹5,476
C	0.25	½" x 5"	₹316
C	0.35	½" x 5"	₹360
C	0.50	½" x 5"	₹457
C	0.75	½" x 5"	₹755
C	1.00	½" x 5"	₹914
C	1.50	½" x 5"	₹1,469
C	2.00	½" x 5"	₹1,869
C	2.50	½" x 5"	₹2,342
C	3.00	½" x 5"	₹2,777
C	3.50	½" x 5"	₹3,175
C	4.00	⅝" x 5"	₹3,573
C	5.00	⅝" x 5"	₹4,600

Authorised Wendt dealer in Vadodara

Chetan Abrasives Pvt. Ltd., Chetan House, Lehripura New Road, Vadodara 390001.

Mon–Sat, 9:00–18:00

+91 95123 49969

Questions

What is the price of the Wendt STAR Single Point Diamond Dresser?

MRP ₹316 to ₹6,193, inclusive of GST, depending on size (Wendt STAR MRP list 2026-27). Call +91 95123 49969 for our price and stock.

Which carat size do I need?

Larger and wider wheels need a bigger diamond. As a rough guide, small bench and surface grinder wheels use 0.25–0.75 ct, and large cylindrical or centreless wheels use 1 ct and above. Tell us your wheel size and we will suggest one.

What is the difference between Grade A, B and C?

All three use natural diamonds; the grade reflects the diamond quality selected. Grade A costs the most and lasts longest, Grade C is the economy option.

Where can I buy Wendt products in Vadodara?

At Chetan Abrasives, Chetan House, Lehripura New Road, Vadodara. Call or WhatsApp +91 95123 49969.
