Bosch IDS 18V-200T Impact Wrench spare parts
Tool number 3 601 JN0 0L0 · 18 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
1 600 A03 6T6
₹1,503
Stator
1 619 P17 448
₹1,143
Rotor
1 607 200 3BS
₹1,110
Switch
1 600 A03 6T7
₹4,872
Electronic Module
1 600 A03 6TA
₹4,873
Gear Box
All parts
| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| 1 605 806 6UE | Housing | 1 | ₹865 | |
| 2 607 226 537 | Fast Charger IND GAL | 1 | On request | |
| 1 600 A03 6T6 | StatorWear part | 1 | ₹1,503 | |
| 2 607 226 251 | Fast Charger EU GAL | 1 | On request | |
| 1 619 P17 448 | RotorWear part | 1 | ₹1,143 | |
| 1 607 200 3BS | SwitchWear part | 1 | ₹1,110 | |
| 1 600 A03 6T7 | Electronic ModuleWear part | 1 | ₹4,872 | |
| 1 600 A02 3EE | Changeover Lever | 1 | ₹28 | |
| 1 600 A03 6HF | Electronics ModuleWear part | 1 | ₹398 | |
| 1 600 A03 6P6 | Adhesive Tape | 2 | ₹264 | |
| Nameplate | 1 | ₹267 | ||
| Manufacturer's nameplate | 1 | ₹241 | ||
| Sticker | 1 | ₹267 | ||
| 1 601 11C 684 | Sticker | 1 | ₹237 | |
| 1 600 A03 6TA | Gear BoxWear part | 1 | ₹4,873 | |
| 1 609 280 477 | Compression Spring | 1 | ₹54 | |
| 2 609 101 083 | Lens | 1 | ₹31 | |
| 1 600 A03 6TB | Separator | 1 | ₹464 | |
| Front Cap | 1 | ₹404 | ||
| Rubber Ring | 1 | ₹382 | ||
| Battery Pack GBA 18V | 1 | On request | ||
| 2 609 110 201 | Torx Flat-Head Screw 3X16 | 10 | ₹31 | |
| 1 603 430 08S | Screw | 4 | ₹42 | |
| 1 600 A03 6TE | Felt | 2 | ₹298 | |
| 1 600 A03 6TF | Separator | 1 | ₹397 | |
| 2 607 226 253 | Fast Charger GB GAL | 1 | On request | |
| 2 607 226 267 | Fast Charger CN GAL | 1 | On request |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the field (stator) part number for the Bosch IDS 18V-200T?

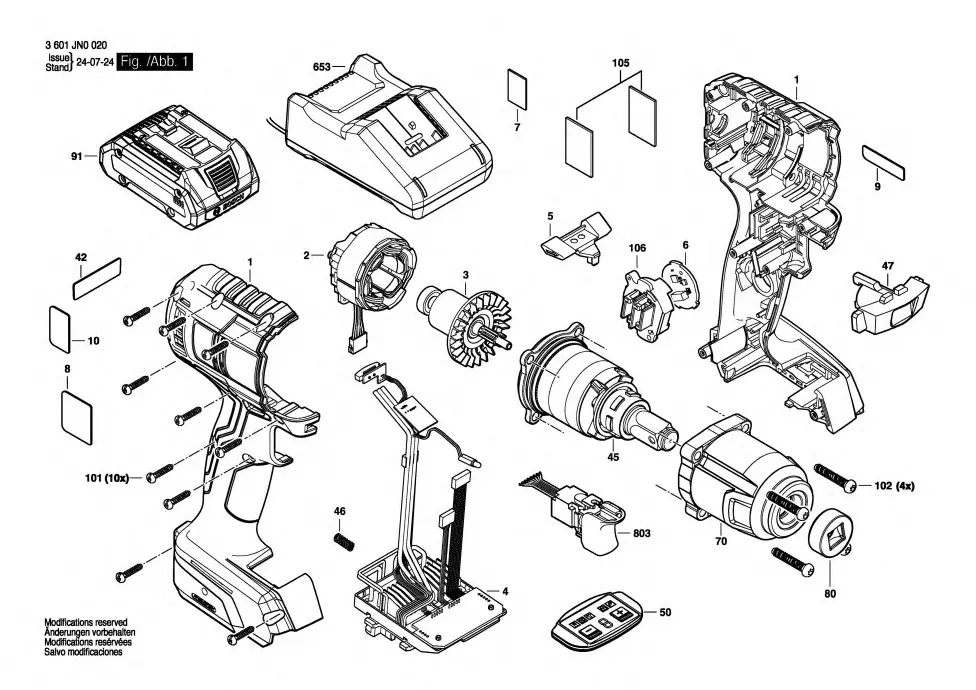

Stator, Bosch part number 1 600 A03 6T6 (diagram item 2). List price ₹1,503.
What is the armature part number for the Bosch IDS 18V-200T?
Rotor, Bosch part number 1 619 P17 448 (diagram item 3). List price ₹1,143.
What is the switch part number for the Bosch IDS 18V-200T?
Switch, Bosch part number 1 607 200 3BS (diagram item 803). List price ₹1,110.
What is the electronics module part number for the Bosch IDS 18V-200T?
Electronic Module, Bosch part number 1 600 A03 6T7 (diagram item 4). List price ₹4,872.
What is the gear set part number for the Bosch IDS 18V-200T?
Gear Box, Bosch part number 1 600 A03 6TA (diagram item 45). List price ₹4,873.
