Bosch GWS 18V-10 (E) Cordless Angle Grinder spare parts
Tool number 3 601 JJ4 0K0 · 18 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹747
Switch
groove ball bearing
₹105
Grinding Spindle M10.
₹431
Bevel Gear Shaft
₹5,286
Electronics Module
All parts

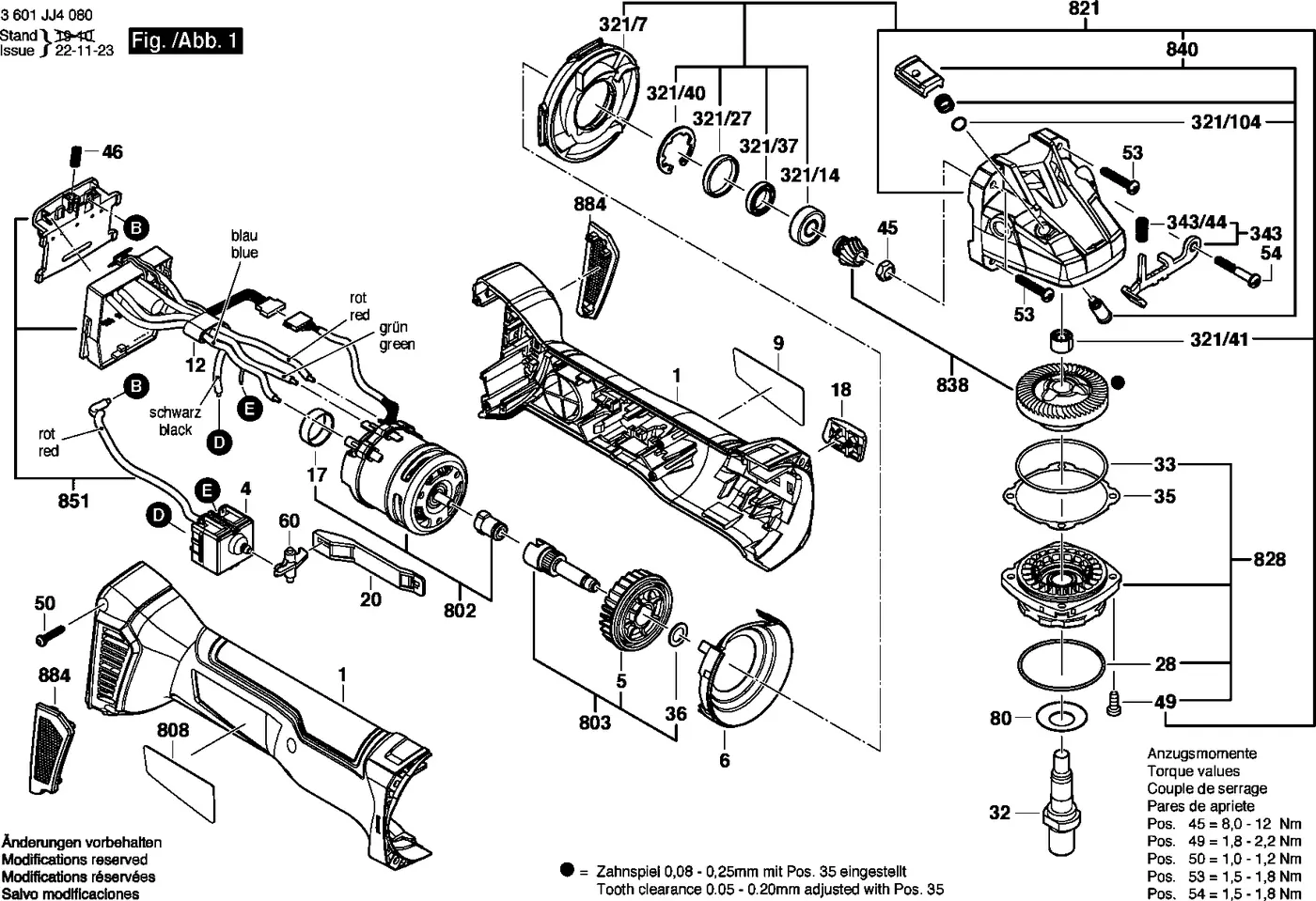

| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| 1 619 P15 334 | Motor Housing | 1 | ₹1,106 | |
| 1 619 P09 390 | Cover Disc | 1 | ₹77 | |
| 2 607 202 328 | SwitchWear part | 1 | ₹747 | |
| 1 619 P16 508 | Air Distributor | 1 | ₹85 | |
| 1 619 P16 641 | Fan | 1 | ₹158 | |
| 1 619 P09 955 | groove ball bearingWear part | 1 | ₹87 | |
| 1 600 591 065 | Air-Deflector Ring | 1 | ₹132 | |
| 1 600 206 025 | Rubber Ring | 1 | ₹31 | |
| 1 619 P15 337 | Manufacturer's nameplate | 1 | On request | |
| 1 600 A00 P17 | Holder | 1 | ₹51 | |
| 1 600 A00 RK2 | Ferrite | 1 | ₹115 | |
| 1 600 119 011 | Retaining clip | 1 | ₹55 | |
| 1 600 100 P12 | Cover | 1 | ₹85 | |
| 1 600 200 029 | Plain bearingWear part | 1 | ₹33 | |
| 1 619 P15 338 | Switch HandleWear part | 1 | ₹86 | |
| 1 600 210 044 | O-Ring 4.5X1.0 MM BLUE | 1 | ₹34 | |
| 1 619 P16 511 | Adjusting Slide | 1 | ₹32 | |
| 1 607 000 742 | Catch Lever | 1 | ₹269 | |
| 3 600 210 109 | O-Ring 47.0X1.5 MM | 1 | ₹55 | |
| 1 604 611 042 | Compression Spring | 1 | ₹34 | |
| 1 603 523 111 | Grinding Spindle M10.Wear part | 1 | ₹105 | |
| 1 619 P10 681 | Auxiliary Handle | 1 | ₹191 | |
| 1 600 210 035 | O-Ring 46.0X1.1 MM | 1 | ₹56 | |
| 1 619 P09 976 | Round Nut With 2 Holes | 1 | ₹57 | |
| 1 600 136 020 | Shim 0.15 MM THICK | 1 | ₹92 | |
| 1 619 P08 928 | Pin-Type Face-Wrench | 1 | ₹41 | |
| 1 600 136 015 | Shim 0.3 MM THICK | 1 | ₹76 | |
| 1 619 P12 159 | Clamping-Flange | 1 | ₹54 | |
| 1 600 136 014 | Shim 0.2 MM THICK | 1 | ₹79 | |
| 1 600 A01 2JH | Protective Cover | 1 | ₹173 | |
| 1 600 136 013 | Shim 0.1 MM THICK | 1 | ₹79 | |
| 2 607 225 921 | Charger EU GAL 1880 CV | 1 | ₹5,578 | |
| 1 610 100 023 | Washer | 1 | ₹51 | |
| 2 607 226 251 | Fast Charger EU GAL | 1 | On request | |
| 1 619 P17 544 | Hex Nut | 1 | ₹43 | |
| 2 607 225 923 | Charger GB 230/10.8-18V. | 1 | On request | |
| 1 609 280 477 | Compression Spring | 1 | ₹54 | |
| 1 617 S01 9K0 | Battery Pack | 1 | On request | |
| 2 914 491 410 | Thread-forming tap. Screw | 4 | ₹34 | |
| 2 607 337 069 | Battery Pack BBS MR. | 1 | On request | |
| 2 609 110 201 | Torx Flat-Head Screw 3X16 | 4 | ₹31 | |
| 1 607 000 CA4 | Motor | 1 | ₹4,515 | |
| 1 619 P01 066 | Torx Oval-Head Screw | 3 | ₹33 | |
| 1 607 000 CA5 | Bevel Gear ShaftWear part | 1 | ₹431 | |
| 2 603 490 025 | Torx Oval-Head Screw | 1 | ₹34 | |
| Nameplate | 1 | On request | ||
| 1 600 A00 P18 | Reverse-Transfer Lever | 1 | ₹51 | |
| 1 607 000 CA6 | Gear Housing | 1 | ₹939 | |
| 1 619 P15 775 | Bearing FlangeWear part | 1 | ₹583 | |
| 1 607 000 CA8 | Gear UnitWear part | 1 | ₹833 | |
| 1 607 000 V41 | Push-Button | 1 | ₹153 | |
| 1 619 P15 493 | Electronics ModuleWear part | 1 | ₹5,286 | |
| 1 607 000 CA9 | Filter Unit | 1 | ₹496 | |
| 1 615 430 020 | Grease Tube 225 ML | 1 | ₹1,604 | |
| 1 605 430 003 | Grease Tube 225 ML | 1 | ₹1,733 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the switch part number for the Bosch GWS 18V-10 (E)?
Switch, Bosch part number 2 607 202 328 (diagram item 4). List price ₹747.
Which bearings does the Bosch GWS 18V-10 (E) use?
groove ball bearing, Bosch part number 1 619 P09 955 (diagram item 321/14). List price ₹87.
What is the spindle part number for the Bosch GWS 18V-10 (E)?
Grinding Spindle M10., Bosch part number 1 603 523 111 (diagram item 32). List price ₹105.
What is the gear set part number for the Bosch GWS 18V-10 (E)?
Bevel Gear Shaft, Bosch part number 1 607 000 CA5 (diagram item 803). List price ₹431.
What is the electronics module part number for the Bosch GWS 18V-10 (E)?
Electronics Module, Bosch part number 1 619 P15 493 (diagram item 851). List price ₹5,286.
