Bosch GSS 2300 Orbital Sander spare parts
Tool number 3 601 B98 0K0 · 230 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹687
Field assembly 220-240V
₹801
Armature 220-240V
₹257
Switch
₹321
Power supply cord
₹212
Carbon-Brush Set
₹118
Bearing
All parts

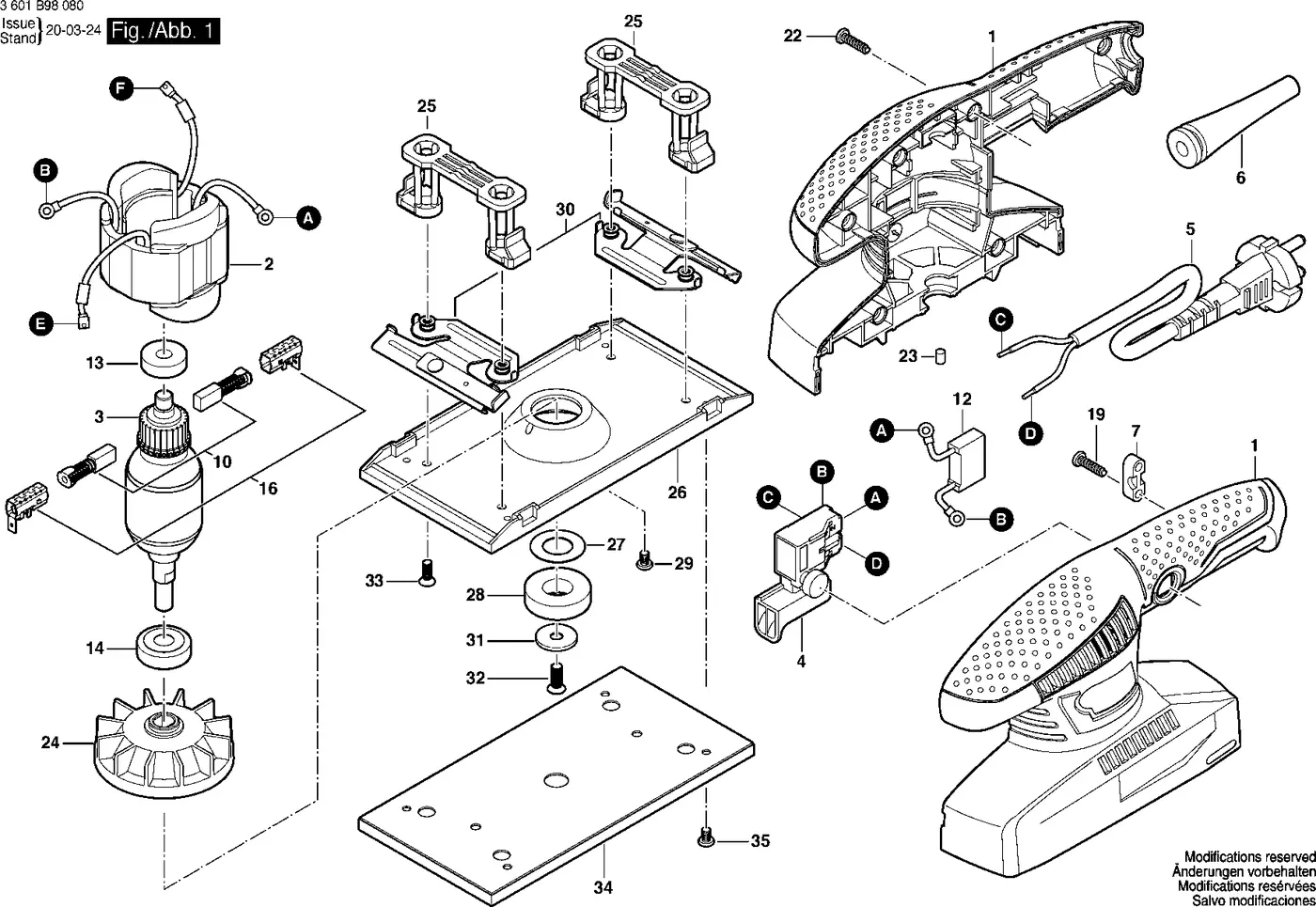

| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Housing Set | 1 | ₹647 | ||
| Screw | 4 | ₹43 | ||
| 1 619 PA7 627 | Field assembly 220-240VWear part | 1 | ₹687 | |
| Foam Panel | 1 | ₹215 | ||
| 1 619 PA7 629 | Armature 220-240VWear part | 1 | ₹801 | |
| Screw | 4 | ₹41 | ||
| 1 619 PA7 631 | SwitchWear part | 1 | ₹257 | |
| 1 619 PA7 801 | Power supply cordWear part | 1 | ₹321 | |
| Grommet | 1 | ₹41 | ||
| Clip | 1 | ₹41 | ||
| 1 619 PA7 635 | Carbon-Brush SetWear part | 1 | ₹212 | |
| Suppression Capacitor | 1 | ₹41 | ||
| 1 619 PA7 637 | BearingWear part | 1 | ₹118 | |
| 1 619 PA7 638 | BearingWear part | 1 | ₹76 | |
| 1 619 PA7 639 | Carbon Brush HolderWear part | 1 | ₹125 | |
| Screw | 2 | ₹41 | ||
| 1 619 PA7 641 | Screw | 6 | ₹41 | |
| Rubber Pad | 4 | ₹41 | ||
| Fan | 1 | ₹171 | ||
| Support | 2 | ₹129 | ||
| Baseplate | 1 | ₹377 | ||
| Plain Washer | 1 | ₹41 | ||
| 1 619 PA7 646 | BearingWear part | 1 | ₹136 | |
| Screw | 2 | ₹41 | ||
| Clamp | 1 | ₹204 | ||
| Plain Washer | 1 | ₹41 | ||
| Screw | 1 | ₹41 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the field (stator) part number for the Bosch GSS 2300?
Field assembly 220-240V, Bosch part number 1 619 PA7 627 (diagram item 2). List price ₹687.
What is the armature part number for the Bosch GSS 2300?
Armature 220-240V, Bosch part number 1 619 PA7 629 (diagram item 3). List price ₹801.
What is the switch part number for the Bosch GSS 2300?
Switch, Bosch part number 1 619 PA7 631 (diagram item 4). List price ₹257.
Which power cord fits the Bosch GSS 2300?
Power supply cord, Bosch part number 1 619 PA7 801 (diagram item 5). List price ₹321.
Which carbon brushes fit the Bosch GSS 2300?
Carbon-Brush Set, Bosch part number 1 619 PA7 635 (diagram item 10). List price ₹212.
Which bearings does the Bosch GSS 2300 use?
Bearing, Bosch part number 1 619 PA7 637 (diagram item 13). List price ₹118.
