Bosch GSB 185-LI Cordless Impact Driver spare parts

    Tool number 3 601 JK3 180 · 18 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    View the Bosch GSB 185-LI →
    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    1 619 P15 696

    ₹835

    Stator

    2 607 202 513

    ₹1,651

    Electronics Module

    1 600 A02 7W8

    ₹1,468

    Keyless Chuck

    1 600 A01 2MM

    ₹268

    Switchover Unit

    1 600 A03 J9T

    ₹1,467

    Gear Box

    1 607 000 EC2

    ₹728

    Rotor

    All parts

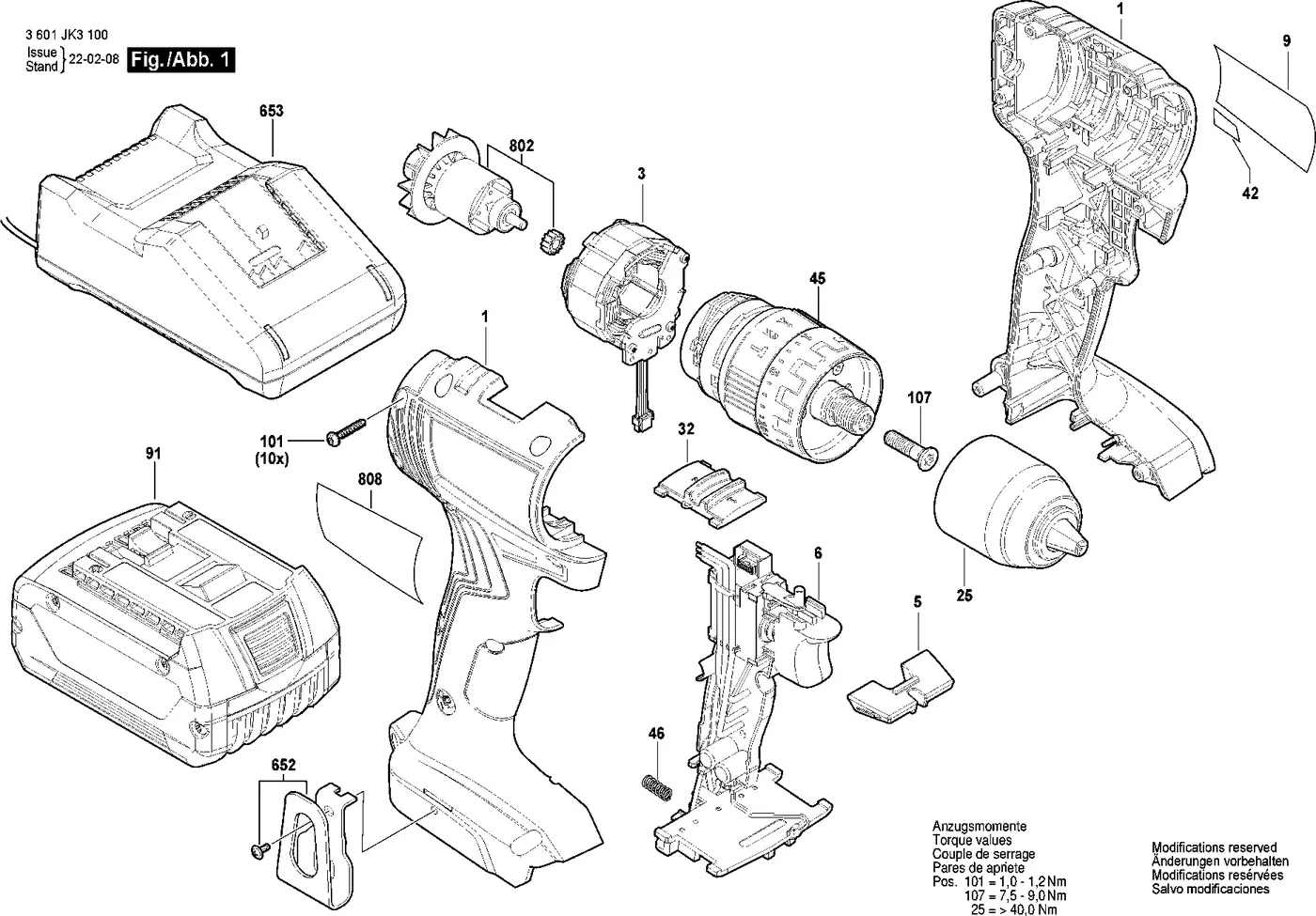

    ItemPart numberDescriptionQtyList price
    1 605 806 62HHousing1₹596
    1 619 P15 696StatorWear part1₹835
    1 600 A01 Z04Changeover Lever1₹102
    2 607 202 513Electronics ModuleWear part1₹1,651
    Manufacturer's nameplate1On request
    1 600 A02 7W8Keyless ChuckWear part1₹1,468
    1 600 A01 2MMSwitchover UnitWear part1₹268
    1 601 11C 49HSticker1On request
    1 600 A03 J9TGear BoxWear part1₹1,467
    1 609 280 477Compression Spring1₹54
    1 607 A35 0MNBattery Pack GBA 18V1On request
    1 607 A35 0V8Battery Pack GBA 18V1On request
    2 609 110 201Torx Flat-Head Screw 3X1610₹31
    2 603 421 229Countersunk-Head Screw1₹55
    1 600 A02 7W3Clip1₹114
    2 607 226 281Fast Charger EU GAL1On request
    2 607 226 283Fast Charger UK GAL1On request
    2 607 226 289Fast Charger LAM1On request
    1 607 000 EC2RotorWear part1₹728
    Nameplate1On request

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the field (stator) part number for the Bosch GSB 185-LI?

    Stator, Bosch part number 1 619 P15 696 (diagram item 3). List price ₹835.

    What is the electronics module part number for the Bosch GSB 185-LI?

    Electronics Module, Bosch part number 2 607 202 513 (diagram item 6). List price ₹1,651.

    Which chuck fits the Bosch GSB 185-LI?

    Keyless Chuck, Bosch part number 1 600 A02 7W8 (diagram item 25). List price ₹1,468.

    What is the switch part number for the Bosch GSB 185-LI?

    Switchover Unit, Bosch part number 1 600 A01 2MM (diagram item 32). List price ₹268.

    What is the gear set part number for the Bosch GSB 185-LI?

    Gear Box, Bosch part number 1 600 A03 J9T (diagram item 45). List price ₹1,467.

    What is the armature part number for the Bosch GSB 185-LI?

    Rotor, Bosch part number 1 607 000 EC2 (diagram item 802). List price ₹728.
