Bosch GRW 140 Mixer spare parts
Tool number 3 601 AC4 0F0 · 230 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹688
Field
₹231
On-Off Switch
On request
Power supply cord
Ball Bearing
₹244
Toothed Gear
₹933
Printed Circuit Board
₹1,482
Armature set
Carbon-Brush Set

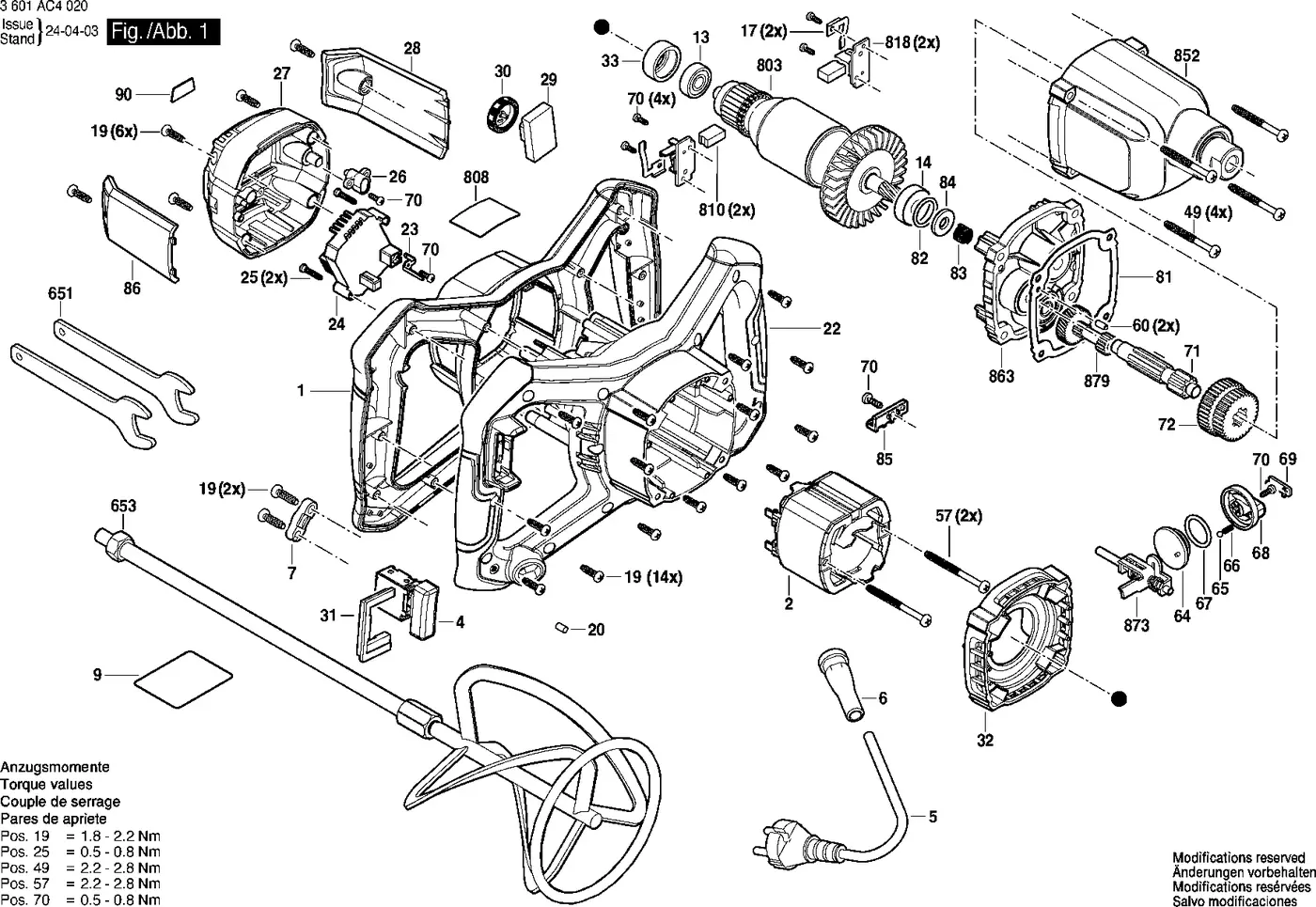

All parts
| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Motor Housing | 1 | ₹446 | ||
| Tapping Screw | 4 | ₹27 | ||
| 1 619 PC1 766 | FieldWear part | 1 | ₹688 | |
| Tapping Screw | 2 | ₹28 | ||
| 1 619 PC1 775 | On-Off SwitchWear part | 1 | ₹231 | |
| Straight Pin | 2 | ₹27 | ||
| 1 619 PC1 770 | Power supply cordWear part | 1 | On request | |
| Shift Plate | 1 | ₹27 | ||
| Grommet | 1 | ₹27 | ||
| Ball | 1 | ₹27 | ||
| 1 619 PC1 776 | Cable ClipWear part | 1 | ₹27 | |
| Spring | 1 | ₹27 | ||
| Manufacturer's nameplate | 1 | On request | ||
| O-Ring | 1 | ₹27 | ||
| 1 619 PC1 762 | Ball BearingWear part | 1 | ₹82 | |
| Shift-Lever Knob | 1 | ₹27 | ||
| 1 619 PC1 758 | Ball BearingWear part | 1 | ₹82 | |
| Cover Plate | 1 | ₹27 | ||
| Shaped Spring | 2 | On request | ||
| Tapping Screw | 8 | ₹42 | ||
| Tapping Screw | 23 | ₹108 | ||
| Toothed Shaft | 1 | ₹202 | ||
| Rubber Bar | 1 | ₹28 | ||
| 1 619 PC1 744 | Toothed GearWear part | 1 | ₹244 | |
| Handle Cover | 1 | ₹527 | ||
| Sealing Plate | 1 | ₹28 | ||
| Shaped Spring | 1 | ₹27 | ||
| O-Ring | 1 | ₹28 | ||
| 1 619 PC1 126 | Printed Circuit BoardWear part | 1 | ₹933 | |
| Spring | 1 | ₹28 | ||
| Tapping Screw | 2 | ₹28 | ||
| Felt seal ring | 1 | ₹28 | ||
| Indicator cover | 1 | ₹28 | ||
| 1 619 PC1 779 | Cable ClipWear part | 1 | ₹42 | |
| Housing Cover | 1 | ₹137 | ||
| Protective Cover | 1 | ₹42 | ||
| Protective Cover | 1 | ₹28 | ||
| Warning Label | 1 | On request | ||
| Potentiometer | 1 | ₹45 | ||
| Assembly Wrench | 2 | ₹59 | ||
| Thumbwheel | 1 | ₹28 | ||
| Mixer Attachment | 1 | ₹975 | ||
| Spacer | 1 | ₹27 | ||
| 1 619 PC1 757 | Armature setWear part | 1 | ₹1,482 | |
| Air-Deflector Ring | 1 | ₹42 | ||
| Nameplate | 1 | On request | ||
| Rubber Ring | 1 | ₹28 | ||
| 1 619 PC2 022 | Carbon-Brush SetWear part | 1 | ₹68 | |
| Gear Housing | 1 | ₹1,041 | ||
| Intermediate Flange | 1 | ₹306 | ||
| Shift Lever | 1 | ₹97 | ||
| 1 619 PC1 750 | Gear UnitWear part | 1 | ₹423 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the field (stator) part number for the Bosch GRW 140?
Field, Bosch part number 1 619 PC1 766 (diagram item 2). List price ₹688.
What is the switch part number for the Bosch GRW 140?
On-Off Switch, Bosch part number 1 619 PC1 775 (diagram item 4). List price ₹231.
Which power cord fits the Bosch GRW 140?
Power supply cord, Bosch part number 1 619 PC1 770 (diagram item 5).
Which bearings does the Bosch GRW 140 use?
Ball Bearing, Bosch part number 1 619 PC1 762 (diagram item 13). List price ₹82.
What is the gear set part number for the Bosch GRW 140?
Toothed Gear, Bosch part number 1 619 PC1 744 (diagram item 72). List price ₹244.
What is the electronics module part number for the Bosch GRW 140?
Printed Circuit Board, Bosch part number 1 619 PC1 126 (diagram item 24). List price ₹933.
