Bosch GHO 6500 Planer spare parts

    Tool number 3 601 E96 0K0 · 230 V

    Prices from the Bosch India Spare Parts Price List 2026 · Last updated

    Call +91 95123 49969WhatsApp a parts list

    Most replaced parts

    1 619 PA7 991

    ₹726

    Field 220-240V

    1 619 PA7 993

    ₹1,001

    Armature 220-240V

    1 619 PA7 983

    ₹326

    Switch Kit

    1 619 PA7 979

    On request

    Power supply cord

    1 619 PA7 994

    ₹101

    groove ball bearing

    1 619 PA7 995

    ₹101

    Carbon Brush Holder

    1 619 PA8 003

    ₹113

    Gear Cover

    All parts

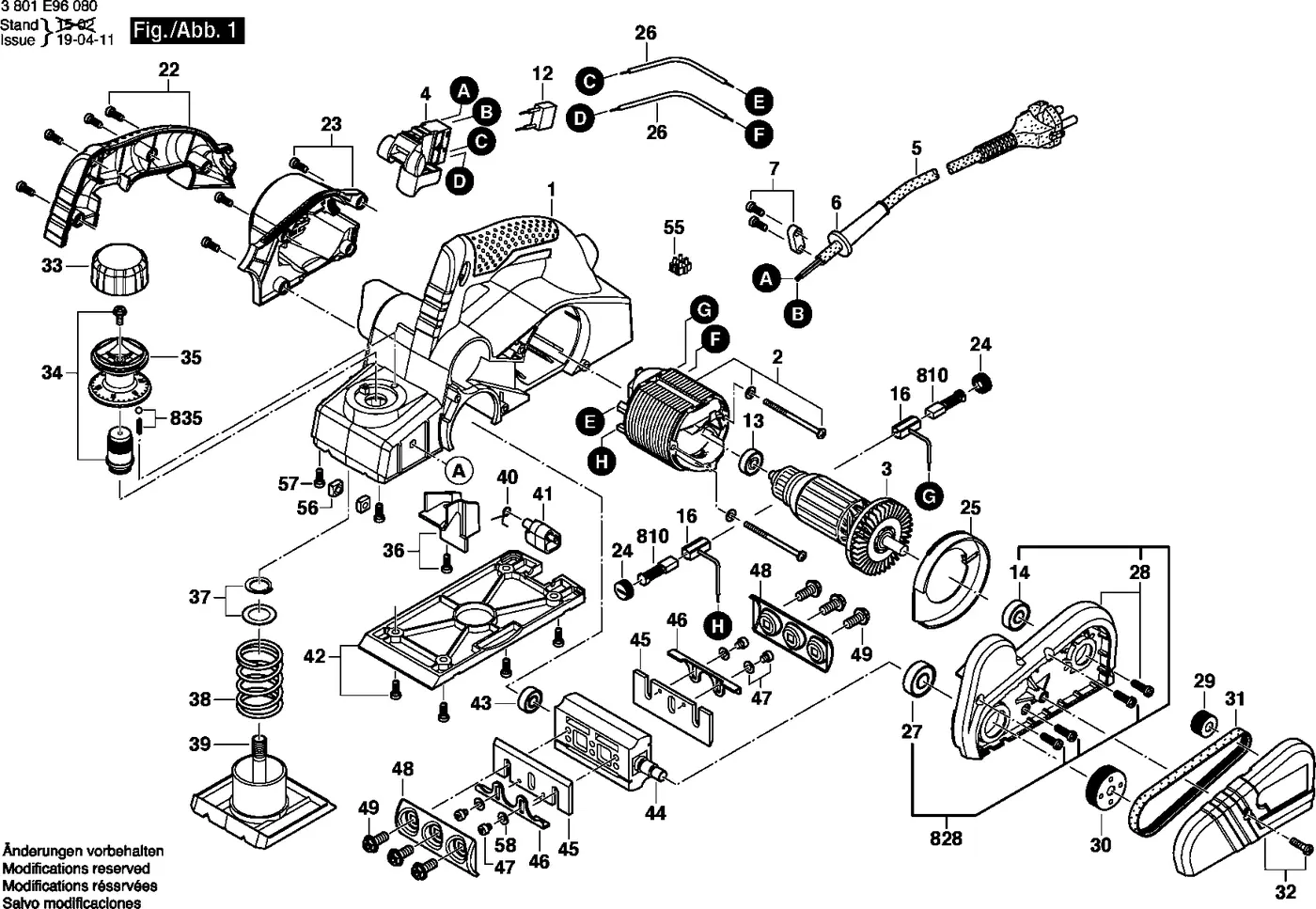

    ItemPart numberDescriptionQtyList price
    Motor Housing1₹978
    Adjustment Knob1₹96
    1 619 PA7 991Field 220-240VWear part1₹726
    Cover1₹77
    1 619 PA7 993Armature 220-240VWear part1₹1,001
    Retaining snap ring1₹43
    1 619 PA7 983Switch KitWear part1₹326
    Compression Spring1₹56
    1 619 PA7 979Power supply cordWear part1On request
    Adjusting Plate1₹387
    Grommet1₹41
    Spring1₹33
    Clamping Piece1₹41
    Knife Guard1₹52
    Suppression Capacitor1₹100
    Base Plate1₹496
    1 619 PA7 994groove ball bearingWear part1₹101
    2 600 905 086groove ball bearing 7X19X6Wear part1₹121
    1 619 PA7 998groove ball bearingWear part1₹101
    Cutting Head1₹748
    1 619 PA7 995Carbon Brush HolderWear part2₹101
    2 609 110 357Planing knife2₹255
    Handle1₹174
    2 602 316 001Stop Holding Device2₹65
    Cover1₹199
    2 603 433 001Torx Oval-Head Screw4₹52
    Brush-Cover2₹56
    2 609 110 064Clamping jaws2₹173
    Air-Deflector Ring1₹76
    2 609 110 084Straining Screw6₹33
    1 619 PA7 981Connecting CableWear part1₹47
    Socket1₹33
    1 619 PA7 999groove ball bearingWear part1₹124
    2 603 320 004Square Nut M62₹55
    1 619 PA8 035Bearing FlangeWear part1₹480
    Screw1₹33
    Pulley1₹107
    2 916 069 088Spring Washer4₹55
    Pulley1₹107
    Guide Bracket1₹493
    V-Belt1₹283
    2 607 970 002Feeler Gauge1₹160
    1 619 PA8 003Gear CoverWear part1₹113
    2 607 950 025Hexagon-Socket Key2₹78
    Cover1₹76
    2 608 133 002Blade Sharpening Device1₹234
    Cap Nut1₹75
    2 609 120 398Carbon BrushWear part1₹297
    1 619 PA7 997Bearing FlangeWear part1₹854
    Spring1₹32

    List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.

    Questions

    What is the field (stator) part number for the Bosch GHO 6500?

    Field 220-240V, Bosch part number 1 619 PA7 991 (diagram item 2). List price ₹726.

    What is the armature part number for the Bosch GHO 6500?

    Armature 220-240V, Bosch part number 1 619 PA7 993 (diagram item 3). List price ₹1,001.

    What is the switch part number for the Bosch GHO 6500?

    Switch Kit, Bosch part number 1 619 PA7 983 (diagram item 4). List price ₹326.

    Which power cord fits the Bosch GHO 6500?

    Power supply cord, Bosch part number 1 619 PA7 979 (diagram item 5).

    Which bearings does the Bosch GHO 6500 use?

    groove ball bearing, Bosch part number 1 619 PA7 994 (diagram item 13). List price ₹101.

    Which carbon brushes fit the Bosch GHO 6500?

    Carbon Brush Holder, Bosch part number 1 619 PA7 995 (diagram item 16). List price ₹101.
