Bosch GDX 18V-200 C Impact Wrench spare parts
Tool number 3 601 JG4 2B1 · 18 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
1 619 P14 412
₹1,424
Stator
1 619 P14 405
₹1,107
Rotor
1 607 233 5EV
₹5,672
Electronics Module
1 600 A01 PG4
₹3,573
Gear Box

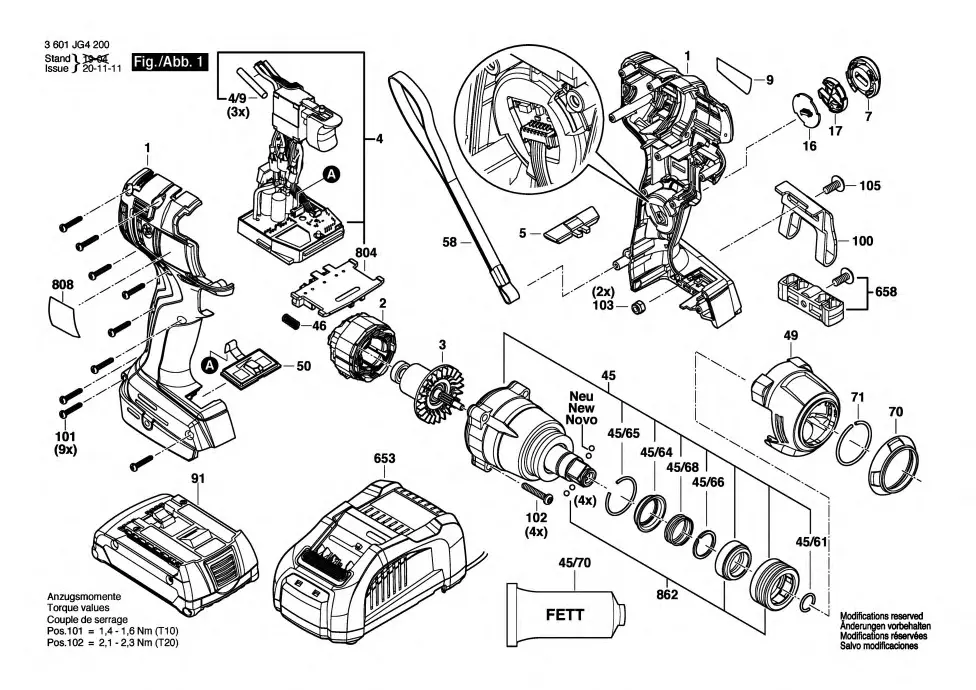

All parts
| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Housing | 1 | ₹687 | ||
| 2 609 111 584 | Clip | 1 | ₹145 | |
| 1 619 P14 412 | StatorWear part | 1 | ₹1,424 | |
| 2 609 110 201 | Torx Flat-Head Screw 3X16 | 9 | ₹31 | |
| 1 619 P14 405 | RotorWear part | 1 | ₹1,107 | |
| 0 618 800 04W | Torx Flat-Head Screw | 4 | ₹188 | |
| 1 607 233 5EV | Electronics ModuleWear part | 1 | ₹5,672 | |
| 2 609 110 835 | Nut | 2 | ₹31 | |
| Shrinkable Tube | 3 | On request | ||
| 2 609 110 834 | Screw | 1 | ₹67 | |
| Changeover Lever | 1 | ₹134 | ||
| 2 607 226 251 | Fast Charger EU GAL | 1 | On request | |
| Cover unit | 1 | ₹198 | ||
| 2 607 226 253 | Fast Charger GB GAL | 1 | On request | |
| Manufacturer's nameplate | 1 | On request | ||
| Charger ROK GAL 1880 | 1 | On request | ||
| Printed-Board Assembly | 1 | ₹492 | ||
| 2 609 199 748 | Bit holder | 1 | ₹89 | |
| Cover Panel | 1 | ₹165 | ||
| 1 609 280 820 | Contact retainer 18V | 1 | ₹305 | |
| 1 600 A01 PG4 | Gear BoxWear part | 1 | ₹3,573 | |
| Nameplate | 1 | On request | ||
| 0 618 800 045 | Retaining ring | 1 | ₹98 | |
| Sleeve assembly | 1 | ₹272 | ||
| Holding Jacket | 1 | ₹134 | ||
| Retaining ring | 1 | ₹165 | ||
| Retaining ring | 1 | ₹165 | ||
| Compression Spring | 1 | ₹132 | ||
| 1 600 A00 2NE | Grease Tube 45 ML | 1 | ₹1,560 | |
| 1 609 280 477 | Compression Spring | 1 | ₹54 | |
| 1 600 A00 J37 | Cover | 1 | ₹258 | |
| Keyboard | 1 | ₹553 | ||
| 2 609 100 301 | Strap | 1 | ₹34 | |
| 1 600 A01 1DL | Protective Cap | 1 | ₹211 | |
| 1 604 601 037 | Retaining ring | 1 | ₹173 | |
| 1 607 A35 0M0 | Battery Pack GBA 18V | 1 | On request |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the field (stator) part number for the Bosch GDX 18V-200 C?
Stator, Bosch part number 1 619 P14 412 (diagram item 2). List price ₹1,424.
What is the armature part number for the Bosch GDX 18V-200 C?
Rotor, Bosch part number 1 619 P14 405 (diagram item 3). List price ₹1,107.
What is the electronics module part number for the Bosch GDX 18V-200 C?
Electronics Module, Bosch part number 1 607 233 5EV (diagram item 4). List price ₹5,672.
What is the gear set part number for the Bosch GDX 18V-200 C?
Gear Box, Bosch part number 1 600 A01 PG4 (diagram item 45). List price ₹3,573.
