Bosch GDS 18V-780 Impact Wrench spare parts
Tool number 3 601 JP4 0L0 · 18 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
1 600 A03 DJ7
₹1,038
Stator
1 600 A03 DJ8
₹1,260
Rotor
1 600 A03 DJ6
₹3,547
Electronic Module
1 600 A03 99V
₹5,067
Gear Box

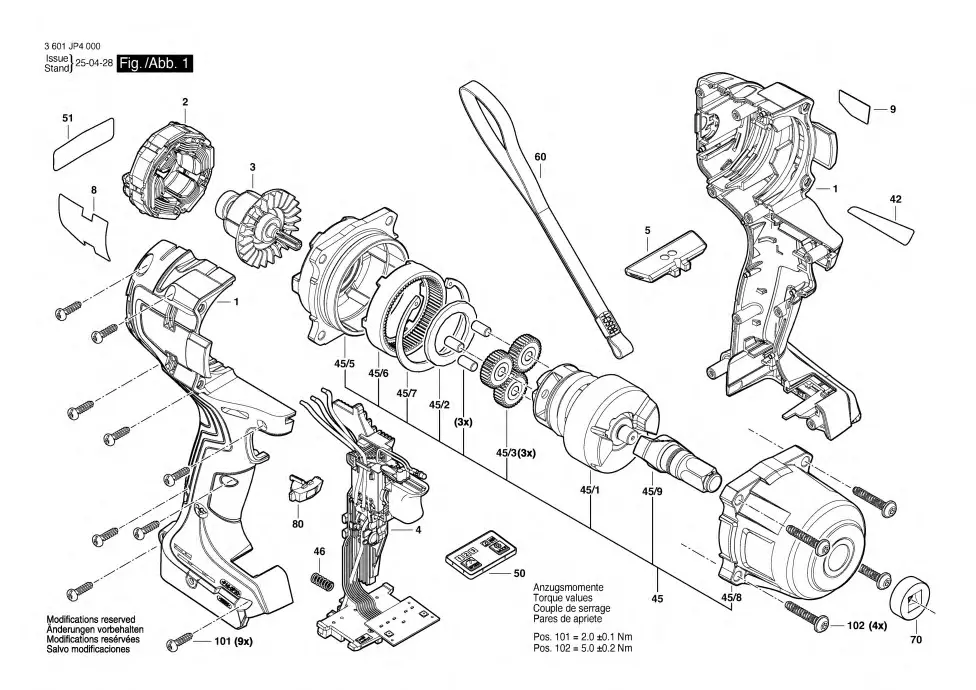

All parts
| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Housing | 1 | ₹699 | ||
| 1 600 A03 DJ7 | StatorWear part | 1 | ₹1,038 | |
| 1 600 A03 DJ8 | RotorWear part | 1 | ₹1,260 | |
| 1 600 A03 DJ6 | Electronic ModuleWear part | 1 | ₹3,547 | |
| Changeover Lever | 1 | ₹124 | ||
| Nameplate | 1 | On request | ||
| Manufacturer's nameplate | 1 | On request | ||
| Sticker | 1 | On request | ||
| 1 600 A03 99V | Gear BoxWear part | 1 | ₹5,067 | |
| Jack Shaft | 1 | ₹1,750 | ||
| Washer | 1 | ₹85 | ||
| 1 600 A03 99Y | Planet GearWear part | 1 | ₹261 | |
| Flange Housing | 1 | ₹1,005 | ||
| 1 600 A03 DK0 | Ring GearWear part | 1 | ₹465 | |
| Circlip | 1 | ₹169 | ||
| Gear Housing | 1 | ₹1,178 | ||
| Coupling Half | 1 | ₹764 | ||
| Separator | 1 | ₹208 | ||
| Sticker | 1 | On request | ||
| 2 609 100 301 | Strap | 1 | ₹34 | |
| Rubber Ring | 1 | ₹169 | ||
| 2 603 490 022 | Screw 4X16 | 9 | ₹30 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the field (stator) part number for the Bosch GDS 18V-780?
Stator, Bosch part number 1 600 A03 DJ7 (diagram item 2). List price ₹1,038.
What is the armature part number for the Bosch GDS 18V-780?
Rotor, Bosch part number 1 600 A03 DJ8 (diagram item 3). List price ₹1,260.
What is the electronics module part number for the Bosch GDS 18V-780?
Electronic Module, Bosch part number 1 600 A03 DJ6 (diagram item 4). List price ₹3,547.
What is the gear set part number for the Bosch GDS 18V-780?
Gear Box, Bosch part number 1 600 A03 99V (diagram item 45). List price ₹5,067.
