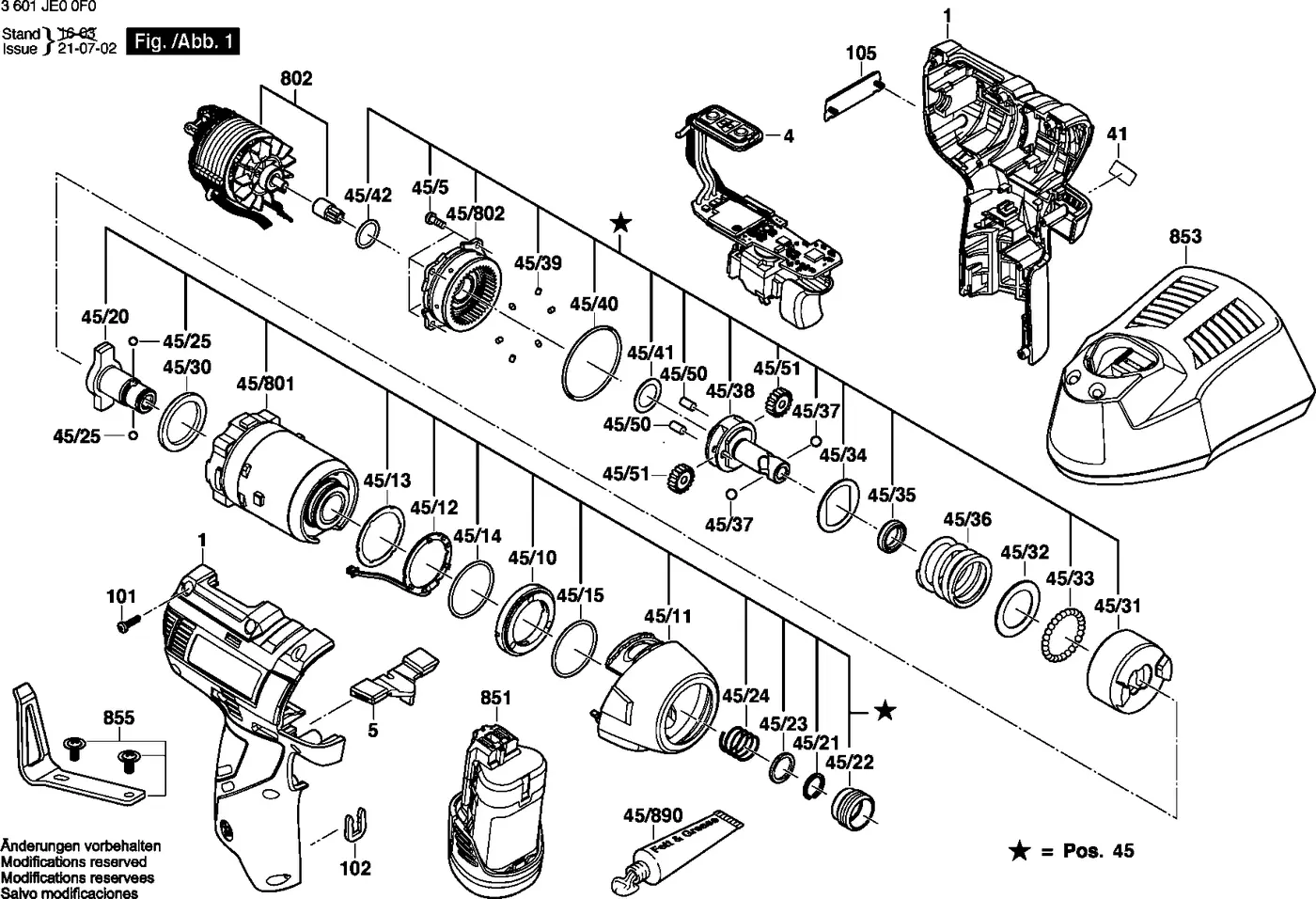

Bosch GDR 12 V-EC Impact Wrench spare parts
Tool number 3 601 JE0 0F6 · 12 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
All parts
| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Housing | 1 | ₹465 | ||
| Contact strap | 1 | ₹136 | ||
| 1 607 233 59U | Electronic ModuleWear part | 1 | ₹3,452 | |
| steel ball | 2 | ₹33 | ||
| Adjusting lever | 1 | ₹33 | ||
| Jack Shaft | 1 | ₹634 | ||
| Sticker | 1 | On request | ||
| Pin | 6 | ₹54 | ||
| 2 609 199 631 | Gear BoxWear part | 1 | ₹3,166 | |
| Seal | 1 | ₹69 | ||
| Screw | 5 | ₹33 | ||
| Washer | 1 | ₹58 | ||
| Lens | 1 | ₹33 | ||
| 2 609 170 243 | O-Ring | 1 | ₹33 | |
| Cover | 1 | ₹115 | ||
| Pin | 2 | ₹53 | ||
| 2 609 125 143 | Module PcbWear part | 1 | ₹286 | |
| 2 609 111 670 | Planet GearWear part | 2 | ₹152 | |
| Rubber Pad | 1 | ₹60 | ||
| Gear Housing | 1 | ₹443 | ||
| O-Ring | 1 | ₹61 | ||
| Flange Housing | 2 | ₹537 | ||
| Damping rubber | 1 | ₹66 | ||
| 1 600 A00 2NE | Grease Tube 45 ML | 1 | ₹1,560 | |
| Coupling Half | 1 | ₹430 | ||
| 2 609 110 883 | Screw | 1 | ₹39 | |
| 2 609 110 336 | Clip | 1 | ₹33 | |
| 2 609 110 537 | Clip | 1 | ₹49 | |
| Sleeve | 1 | ₹216 | ||
| Color clip | 1 | ₹33 | ||
| 2 609 110 329 | Retaining ring | 1 | ₹33 | |
| Brushless DC motor | 1 | ₹1,774 | ||
| 2 609 110 330 | Compression Spring | 1 | ₹33 | |
| 1 607 A35 0C5 | Battery Pack GBA 12V | 1 | On request | |
| steel ball | 2 | ₹33 | ||
| Fast Charger EU GAL | 1 | On request | ||
| Washer | 1 | ₹131 | ||
| Clip | 1 | ₹96 | ||
| 2 609 111 531 | StrikerWear part | 1 | ₹559 | |
| Washer | 1 | ₹69 | ||
| steel ball | 26 | ₹33 | ||
| Thrust Washer | 1 | ₹66 | ||
| Foam Plastics Blank | 1 | ₹77 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the electronics module part number for the Bosch GDR 12 V-EC?
Electronic Module, Bosch part number 1 607 233 59U (diagram item 4). List price ₹3,452.
What is the gear set part number for the Bosch GDR 12 V-EC?
Gear Box, Bosch part number 2 609 199 631 (diagram item 45). List price ₹3,166.
Which piston/striker fits the Bosch GDR 12 V-EC?
Striker, Bosch part number 2 609 111 531 (diagram item 45/31). List price ₹559.
