Bosch GBL 650 Blower spare parts
Tool number 3 601 JM4 0F0 · 230 V
Prices from the Bosch India Spare Parts Price List 2026 · Last updated
Most replaced parts
₹499
Field
₹543
Armature
₹195
Switch
₹321
Power supply cord IND
Ball Bearing
₹111
Carbon-Brush Set
All parts

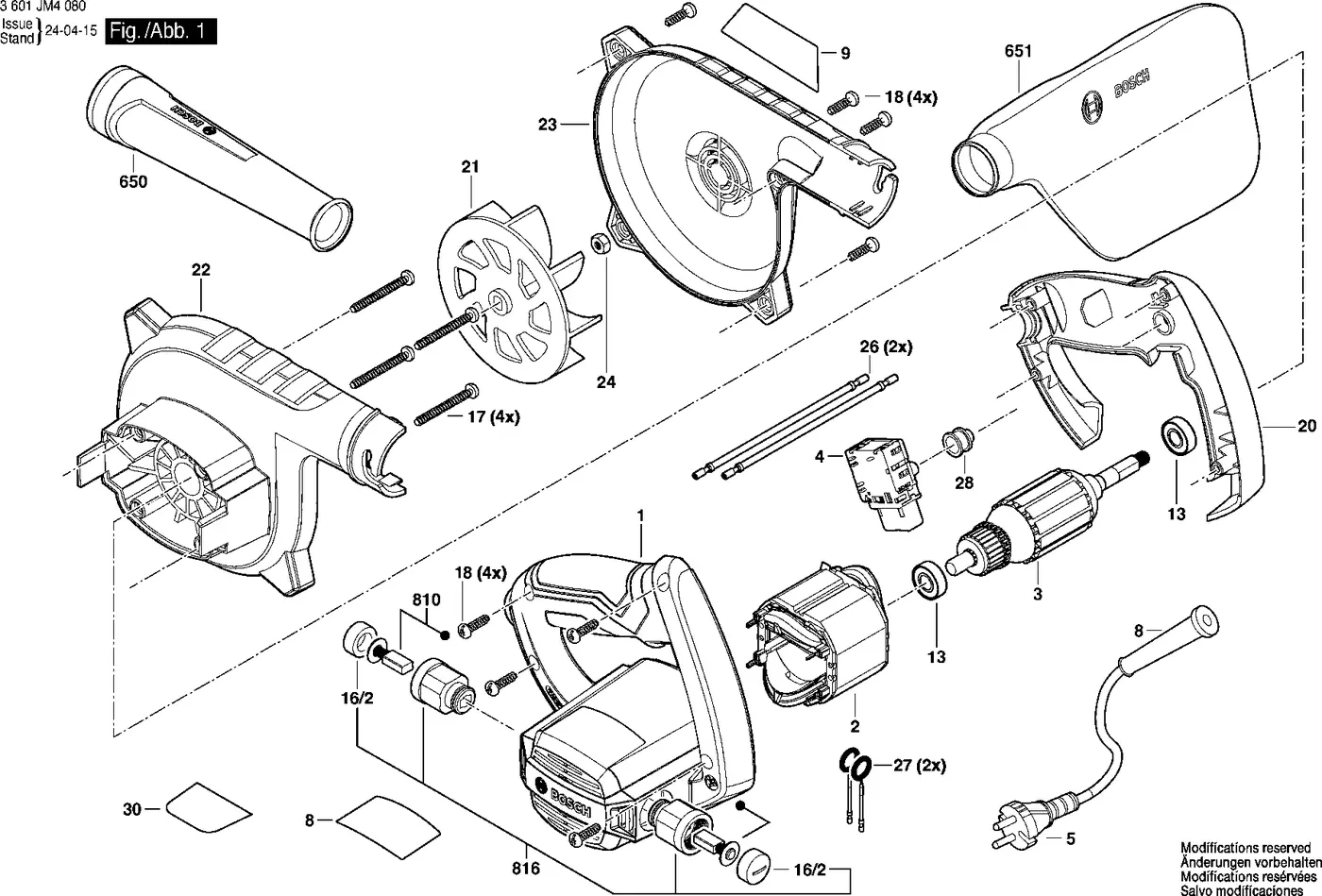

| Item | Part number | Description | Qty | List price |
|---|---|---|---|---|
| Motor Housing | 1 | ₹197 | ||
| Brush Holder | 1 | ₹95 | ||
| 1 604 220 5BM | FieldWear part | 1 | ₹499 | |
| 1 604 010 BU3 | ArmatureWear part | 1 | ₹543 | |
| 1 607 200 39N | SwitchWear part | 1 | ₹195 | |
| 1 604 460 75F | Power supply cord INDWear part | 1 | ₹321 | |
| 2 600 703 017 | Grommet Ø6.4-Ø7.2X76 | 1 | ₹79 | |
| Nameplate | 1 | On request | ||
| Label GBL 650 | 1 | On request | ||
| 1 619 P06 024 | Ball BearingWear part | 2 | ₹43 | |
| F 002 G31 245 | Insulating Cap | 2 | ₹33 | |
| 2 914 201 712 | Screw 4X40MM | 4 | ₹34 | |
| F 002 G31 025 | Screw | 8 | ₹34 | |
| Handle | 1 | ₹78 | ||
| Fan | 1 | ₹83 | ||
| Fan Housing | 1 | ₹190 | ||
| Fan Cover | 1 | ₹138 | ||
| 3 603 435 044 | Hex Nut M6 | 1 | ₹33 | |
| 1 600 A02 U96 | Connecting CableWear part | 2 | ₹28 | |
| Spring Stretching Hook | 2 | ₹28 | ||
| 1 619 P06 293 | Protecting Cover | 1 | ₹38 | |
| Nameplate | 1 | On request | ||
| 1 605 190 265 | Nozzle | 1 | ₹439 | |
| 1 605 411 034 | Dust Bag | 1 | ₹640 | |
| 1 607 000 F68 | Carbon-Brush SetWear part | 1 | ₹111 |
List prices are from the Bosch India spare parts price list 2026 and may change without notice. Call to confirm the price and stock before ordering.
Questions
What is the field (stator) part number for the Bosch GBL 650?
Field, Bosch part number 1 604 220 5BM (diagram item 2). List price ₹499.
What is the armature part number for the Bosch GBL 650?
Armature, Bosch part number 1 604 010 BU3 (diagram item 3). List price ₹543.
What is the switch part number for the Bosch GBL 650?
Switch, Bosch part number 1 607 200 39N (diagram item 4). List price ₹195.
Which power cord fits the Bosch GBL 650?
Power supply cord IND, Bosch part number 1 604 460 75F (diagram item 5). List price ₹321.
Which bearings does the Bosch GBL 650 use?
Ball Bearing, Bosch part number 1 619 P06 024 (diagram item 13). List price ₹43.
Which carbon brushes fit the Bosch GBL 650?
Carbon-Brush Set, Bosch part number 1 607 000 F68 (diagram item 810). List price ₹111.
