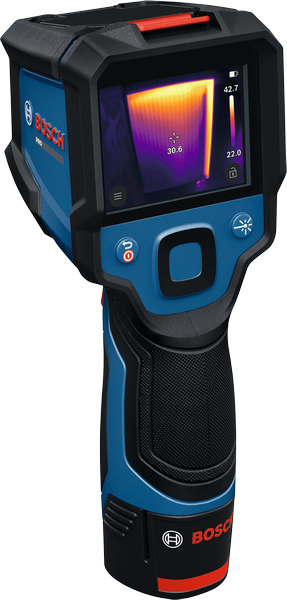

Bosch GTC 450-13 Thermo Camera
SKU 0 601 083 9K0
In the box
- 1 x tool bag
- 4 x 1.5 V LR6 battery (AA)
- AA1 alkaline battery adapter 1 608 M00 C1B
- USB-C® Cable
Compact thermal camera for fast and easy visualisation of temperature differences
- Visualise temperature differences in high image quality with just one click
- Quick startup, integrated laser, worklight and visual camera to ensure easy use
- Robust, compact design with IP54 rating and impact resistance from falls up to 2m
Where to buy the Bosch GTC 450-13 in Vadodara
Chetan Abrasives Pvt. Ltd., Chetan House, Lehripura New Road, Vadodara 390001.
Authorised Bosch Professional dealer since 2000. Mon–Sat 9:00–18:00.
Call or WhatsApp +91 95123 49969 with SKU 0 601 083 9K0.
We deliver across India.
Questions
Where can I buy the Bosch GTC 450-13 in Vadodara?
At Chetan Abrasives, Lehripura New Road, Vadodara. Call +91 95123 49969 for price and stock.
Is Chetan Abrasives an authorised Bosch dealer?
Yes. Chetan Abrasives is an authorised Bosch Professional dealer.
Tools come with the Bosch India warranty and a GST invoice.
What is the SKU / part number of the Bosch GTC 450-13?
0 601 083 9K0.
Specifications
| Battery voltage | 12.0 V |
|---|---|
| Measurement range | -20 °C to +450 °C |
| Measuring accuracy of IR | ± 2.0 °C |
| Resolution | 0.1 °C |
| Laser diode | 645 – 660 nm |
| Thermal sensitivity (NETD) | <=50 mK |
| Size of IR sensor | 256 Pixel x 192 Pixel |
| Number of measuring points | 49152 |
| Field of view (FOV) | 56° x 42° |
| Power supply and runtime | 4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours |
| Frame buffer (number of images) | 500 |
| Memory type | internal memory |
| File format of image | .jpg |
| Data transfer | USB-C® |
| Shock protection | 2 m |
| Dust and splash protection | IP54 |
| Weight | 0.350 kg |
| Size of display | 2.8" |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 50 °C |
| Focus distance, minimum | 0.5 m |
| Thermal image refresh rate | 9 Hz |
| Measuring application | Thermal image |
| Tool dimensions (L x W x H) | 79 x 89 x 209 mm |
| Net weight | 0.356 kg |
| Gross weight | 1.089 kg |
