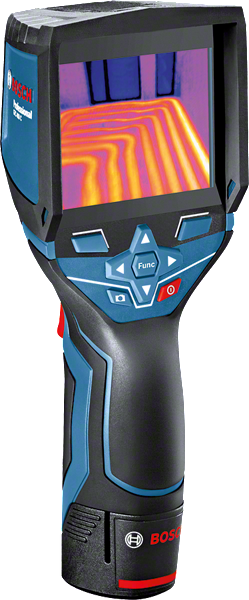

Bosch GTC 400 C Thermo Camera
SKU 0 601 083 150
In the box
- 4 x 1.5 V LR6 battery (AA)
- AA1 alkaline battery adapter 1 608 M00 C1B
- Hand strap
- Micro USB cable 2 609 120 670
- Protective Bag
Immediate visualisation of temperature differences with smart documentation
- Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Where to buy the Bosch GTC 400 C in Vadodara
Chetan Abrasives Pvt. Ltd., Chetan House, Lehripura New Road, Vadodara 390001.
Authorised Bosch Professional dealer since 2000. Mon–Sat 9:00–18:00.
Call or WhatsApp +91 95123 49969 with SKU 0 601 083 150.
We deliver across India.
Questions
Where can I buy the Bosch GTC 400 C in Vadodara?
At Chetan Abrasives, Lehripura New Road, Vadodara. Call +91 95123 49969 for price and stock.
Is Chetan Abrasives an authorised Bosch dealer?
Yes. Chetan Abrasives is an authorised Bosch Professional dealer.
Tools come with the Bosch India warranty and a GST invoice.
What is the SKU / part number of the Bosch GTC 400 C?
0 601 083 150.
Specifications
| Battery voltage | 12.0 V |
|---|---|
| Measurement range | -10 °C to +400 °C |
| Measuring accuracy of IR | ± 3.0 °C |
| Resolution | 0.1 °C |
| Thermal sensitivity (NETD) | <=50 mK |
| Size of IR sensor | 160 Pixel x 120 Pixel |
| Number of measuring points | 19200 |
| Field of view (FOV) | 53° x 43° |
| Power supply and runtime | 4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V |
| Frame buffer (number of images) | 500 |
| Memory type | internal memory |
| File format of image | .jpg |
| Data transfer | Wi-Fi MicroUSB |
| Dust and splash protection | IP53 |
| Weight | 0.540 kg |
| Size of display | 3.5" |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Focus distance, minimum | 0.3 m |
| Measuring application | Thermal image |
| Tool dimensions (L x W x H) | 95 x 233 x 63 mm |
| Net weight | 0.495 kg |
| Gross weight | 1.177 kg |
